Part Number | TJ0811530000G | Manufacturer | Anytek (Amphenol Anytek) |
---|---|---|---|
Description | TERM BLOCK PLUG 8POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 47865 pcs | Data sheet | TJ0811530000G.pdf |
Wire Strip Length | 6-7mm | Wire Gauge or Range - mm² | 0.5-1.5mm² |
Wire Gauge or Range - AWG | 16-26 AWG | Voltage - UL | 300V |
Type | Plug, Female Sockets | Torque - Screw | 0.23 Nm (2.0 Lb-In) |
Termination Style | Screw - Rising Cage Clamp | Series | 01-350 |
Screw Size | M2 | Positions Per Level | 8 |
Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
Packaging | Bulk | Other Names | 20020004-C081B01LF 20020004-C081B01LF-ND 609-4789 TJ0811530000G-ND TJ08115300J0G TJ08115300J0G-ND |
Operating Temperature | -40°C ~ 115°C | Number of Positions | 8 |
Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.437" (11.10mm) |
Ingress Protection | - | Housing Material | Thermoplastic Resin |
Header Orientation | - | Features | - |

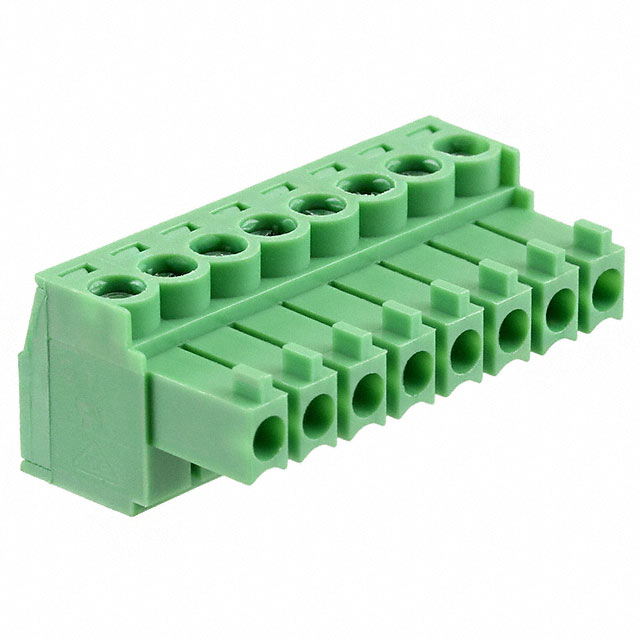

Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
Current - IEC | - | Contact Tail Length | - |
Contact Mating Finish | Tin | Contact Material | Copper Alloy |
Color | Green |
