SA12

Apex MicrotechnologyApex Microtechnology

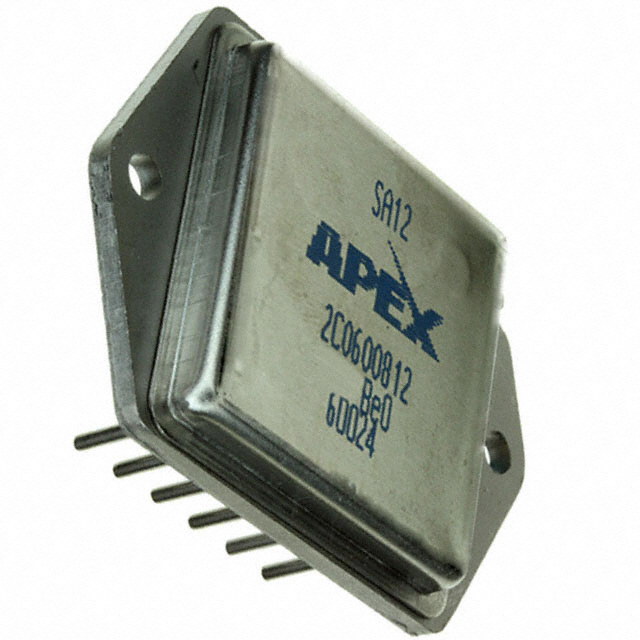

SA12 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SA12
Manufacturer/Brand: Apex Microtechnology
Product description IC MOTOR DRIVER PAR 12DIP
Datasheets: SA12.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 146 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 146 pcs
Reference Price (In US Dollars)
1 pcs
$228.005
10 pcs
$219.561
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$228.005

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SA12

Part Number SA12 Manufacturer Apex Microtechnology
Description IC MOTOR DRIVER PAR 12DIP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 146 pcs Data sheet SA12.pdf
Voltage - Supply 14 V ~ 16 V Voltage - Load 16 V ~ 200 V
Technology Power MOSFET Supplier Device Package 12-PowerDip
Series - Rds On (Typ) 400 mOhm (Max)
Packaging Tube Package / Case 12-PowerDIP, Module
Output Configuration Half Bridge (2) Other Names 598-1364
598-2140-5
598-2140-5-ND
Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Load Type Inductive, Capacitive
Lead Free Status / RoHS Status Lead free / RoHS Compliant Interface PWM
Features - Fault Protection Current Limiting, Over Temperature
Detailed Description Half Bridge (2) Driver AC Motors, Piezo Devices Power MOSFET 12-PowerDip Current - Peak Output 20A
Current - Output / Channel 15A Base Part Number SA*
Applications AC Motors, Piezo Devices
