HCPL-315J-000E

Avago Technologies (Broadcom Limited)

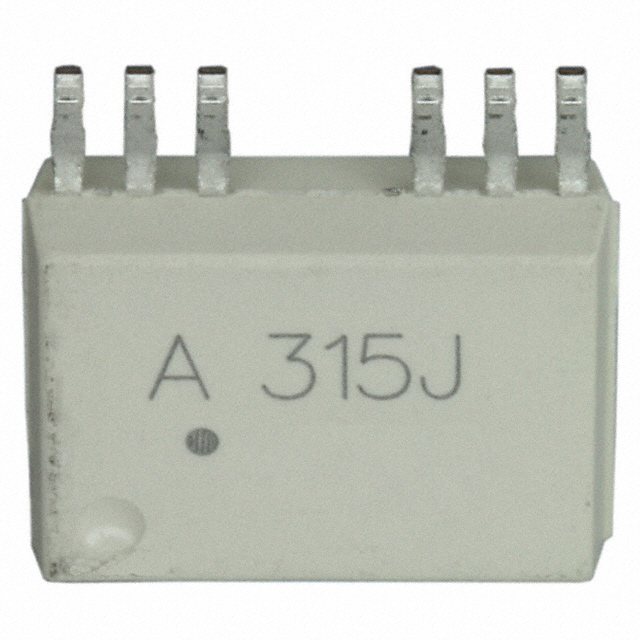

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCPL-315J-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 5KV 2CH GATE DRIVER 16SO
Datasheets:	HCPL-315J-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13915 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 13915 pcs

Reference Price (In US Dollars)

1 pcs: $2.343

10 pcs: $1.951

45 pcs: $1.639

135 pcs: $1.405

270 pcs: $1.249

540 pcs: $1.132

1035 pcs: $1.038

2520 pcs: $0.995

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.343

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCPL-315J-000E

Part Number	HCPL-315J-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 5KV 2CH GATE DRIVER 16SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13915 pcs	Data sheet	HCPL-315J-000E.pdf
Voltage - Supply	15 V ~ 30 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.6V	Technology	Optical Coupling
Supplier Device Package	16-SO	Series	-
Rise / Fall Time (Typ)	100ns, 100ns	Pulse Width Distortion (Max)	300ns
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns	Packaging	Tube
Package / Case	16-SOIC (0.295", 7.50mm Width), 12 Leads	Other Names	516-1673-5 HCPL315J000E
Operating Temperature	-40°C ~ 100°C	Number of Channels	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	600mA Gate Driver Optical Coupling 5000Vrms 2 Channel 16-SO
Current - Peak Output	600mA	Current - Output High, Low	500mA, 500mA
Current - DC Forward (If) (Max)	25mA	Common Mode Transient Immunity (Min)	15kV/µs
Approvals	CSA, IEC/EN/DIN, UR
