7814J-1-023E

Bourns, Inc.

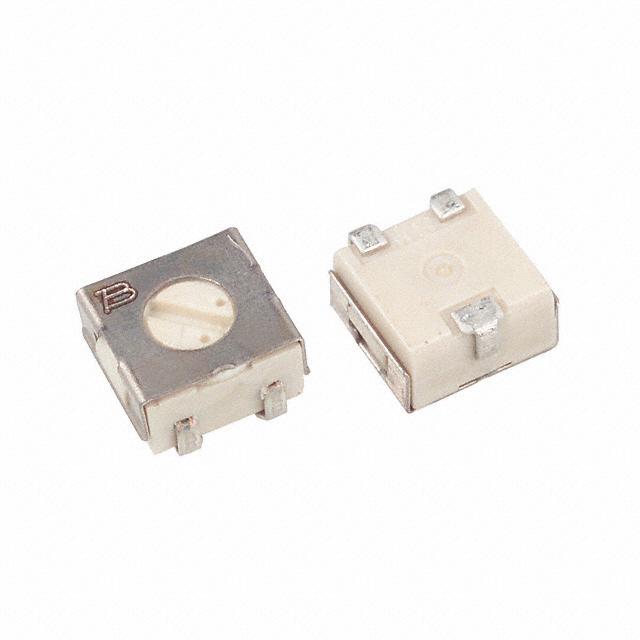

Image may be representation. See specifications for product details.

Product Overview

Part Number:	7814J-1-023E
Manufacturer/Brand:	Bourns, Inc.
Product description	SWITCH ROTARY DIP SPDT 100MA 16V
Datasheets:	7814J-1-023E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73178 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 73178 pcs

Reference Price (In US Dollars)

500 pcs: $0.417

1000 pcs: $0.371

5000 pcs: $0.325

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.417

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 7814J-1-023E

Part Number	7814J-1-023E	Manufacturer	Bourns, Inc.
Description	SWITCH ROTARY DIP SPDT 100MA 16V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73178 pcs	Data sheet	7814J-1-023E.pdf
Washable	No	Voltage Rating	16VAC/DC
Termination Style	J Lead	Series	7814
Pitch	-	Packaging	Tape & Reel (TR)
Other Names	7814J-001-023E 7814J-023ETR 7814J1023E	Operating Temperature	-55°C ~ 125°C
Number of Positions	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Length	0.177" (4.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.100" (2.54mm)	Features	-
Electrical Life	-	Detailed Description	Dip Switch SPDT 2 Position Surface Mount Rotary for Tool Actuator 100mA 16VAC/DC
Current Rating	100mA	Contact Material	-
Contact Finish	-	Circuit	SPDT
Body Material	-	Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed
