23TL4A4

C&K

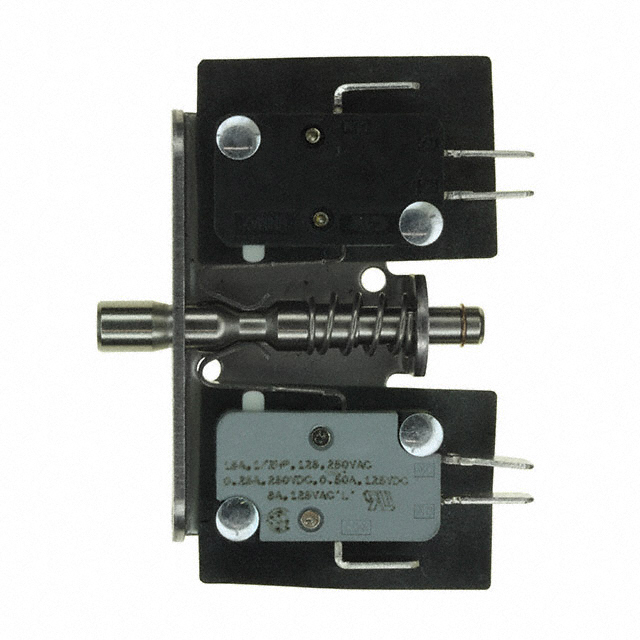

Image may be representation. See specifications for product details.

Product Overview

Part Number:	23TL4A4
Manufacturer/Brand:	C&K
Product description	SWITCH SNAP ACT SPDTX2 15A 125V
Datasheets:	23TL4A4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2035 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2035 pcs

Reference Price (In US Dollars)

1 pcs: $16.922

10 pcs: $12.691

25 pcs: $11.633

50 pcs: $10.928

100 pcs: $10.223

250 pcs: $9.87

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$16.922

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 23TL4A4

Part Number	23TL4A4	Manufacturer	C&K
Description	SWITCH SNAP ACT SPDTX2 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2035 pcs	Data sheet	23TL4A4.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Mom
Series	TL	Release Force	-
Pretravel	-	Packaging	Bulk
Overtravel	-	Other Names	*23TL4A4 CKN9636
Operating Temperature	-55°C ~ 150°C	Operating Position	-
Operating Force	-	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	150,000 Cycles
Differential Travel	-	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT x 2	Actuator Type	Push-Pull Plunger
