HomeProductsSwitchesDIP SwitchesSD05H0SBR

SD05H0SBR

C&KC&K

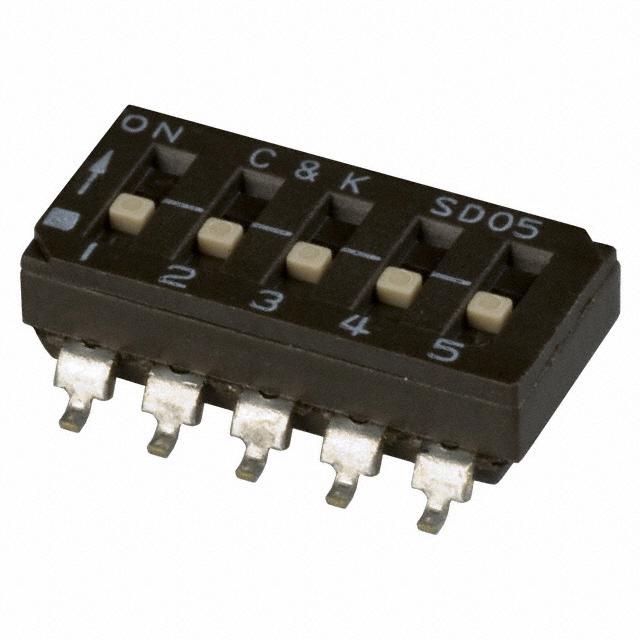

SD05H0SBR Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SD05H0SBR
Manufacturer/Brand: C&K
Product description SWITCH SLIDE DIP SPST 100MA 25V
Datasheets: SD05H0SBR.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 71445 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 71445 pcs
Reference Price (In US Dollars)
1000 pcs
$0.515
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.515

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SD05H0SBR

Part Number SD05H0SBR Manufacturer C&K
Description SWITCH SLIDE DIP SPST 100MA 25V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 71445 pcs Data sheet SD05H0SBR.pdf
Washable Yes Voltage Rating 25VDC
Termination Style Gull Wing Series SD
Pitch 0.100" (2.54mm), Full Packaging Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C Number of Positions 5
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mechanical Life 2,000 Cycles Length 0.558" (14.17mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.170" (4.33mm)
Features Tape Seal Electrical Life 2,000 Cycles
Detailed Description Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC Current Rating 100mA
Contact Material Beryllium Copper Contact Finish Gold
Circuit SPST Body Material Polyphthalamide (PPA)
Actuator Type Slide (Standard) Actuator Level Flush, Recessed
