PS2761B-1-A

CEL (California Eastern Laboratories)

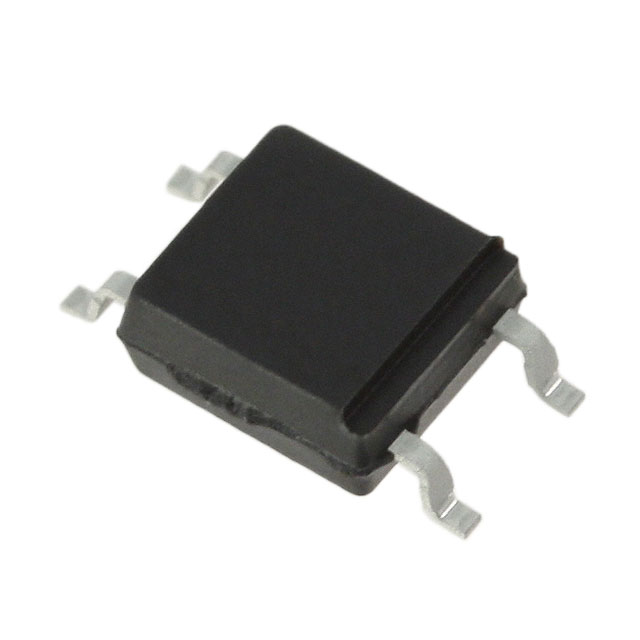

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PS2761B-1-A
Manufacturer/Brand:	CEL (California Eastern Laboratories)
Product description	OPTOISOLATOR 3.75KV TRANS 4SMD
Datasheets:	1.PS2761B-1-A.pdf 2.PS2761B-1-A.pdf 3.PS2761B-1-A.pdf 4.PS2761B-1-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	76408 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 76408 pcs

Reference Price (In US Dollars)

1 pcs: $0.464

10 pcs: $0.377

25 pcs: $0.29

100 pcs: $0.261

300 pcs: $0.232

500 pcs: $0.197

1000 pcs: $0.162

2500 pcs: $0.154

5000 pcs: $0.151

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.464

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PS2761B-1-A

Part Number	PS2761B-1-A	Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISOLATOR 3.75KV TRANS 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76408 pcs	Data sheet	1.PS2761B-1-A.pdf 2.PS2761B-1-A.pdf 3.PS2761B-1-A.pdf 4.PS2761B-1-A.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.1V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SOP
Series	NEPOC	Rise / Fall Time (Typ)	4µs, 5µs
Packaging	Tube	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	PS2761B1A
Operating Temperature	-55°C ~ 110°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA	Current - Output / Channel	40mA
Current - DC Forward (If) (Max)	25mA
