PS9308L2-V-AX

CEL (California Eastern Laboratories)

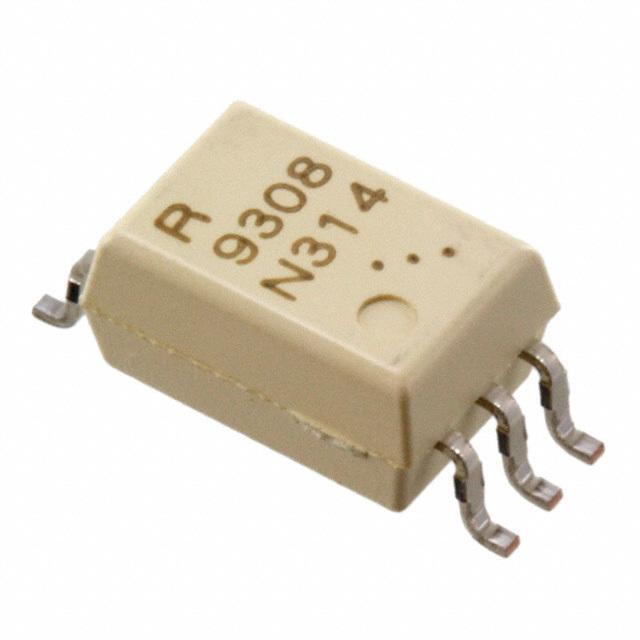

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PS9308L2-V-AX
Manufacturer/Brand:	CEL (California Eastern Laboratories)
Product description	OPTOISO 5KV 1CH GATE DRVR 6SDIP
Datasheets:	1.PS9308L2-V-AX.pdf 2.PS9308L2-V-AX.pdf 3.PS9308L2-V-AX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22399 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22399 pcs

Reference Price (In US Dollars)

1 pcs: $1.317

10 pcs: $1.098

25 pcs: $0.922

100 pcs: $0.79

250 pcs: $0.702

500 pcs: $0.637

1000 pcs: $0.584

2500 pcs: $0.56

5000 pcs: $0.544

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.317

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PS9308L2-V-AX

Part Number	PS9308L2-V-AX	Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISO 5KV 1CH GATE DRVR 6SDIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22399 pcs	Data sheet	1.PS9308L2-V-AX.pdf 2.PS9308L2-V-AX.pdf 3.PS9308L2-V-AX.pdf
Voltage - Supply	15 V ~ 30 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.56V	Technology	Optical Coupling
Supplier Device Package	6-SDIP	Series	-
Rise / Fall Time (Typ)	50ns, 50ns	Pulse Width Distortion (Max)	100ns
Propagation Delay tpLH / tpHL (Max)	250ns, 250ns	Packaging	Strip
Package / Case	6-SOIC (0.268", 6.80mm Width)	Operating Temperature	-40°C ~ 110°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP	Current - Peak Output	2A
Current - Output High, Low	1.5A, 1.5A	Current - DC Forward (If) (Max)	25mA
Common Mode Transient Immunity (Min)	25kV/µs	Approvals	CSA, SEMKO, UL, VDE
