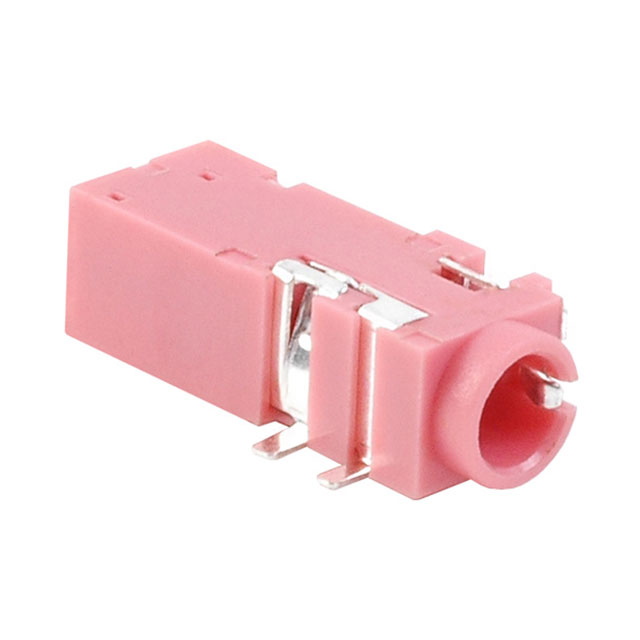

Part Number | SJ-43516-SMT-TR-PI | Manufacturer | CUI, Inc. |
---|---|---|---|
Description | CONN JACK 4COND 3.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 144498 pcs | Data sheet | SJ-43516-SMT-TR-PI.pdf |
Voltage - Rated | 12VDC | Thread Size | - |
Termination | Solder | Signal Lines | Stereo (4 Conductor, TRRS) |
Shielding | Unshielded | Series | SJ |
Panel Hole Size | - | Packaging | Tape & Reel (TR) |
Other Names | CP-43516SJPITR SJ-43516-SMT-PI SJ43516SMTTRPI |
Operating Temperature | -20°C ~ 85°C |
Number of Positions/Contacts | 4 Conductors, 6 Contacts | Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.551" (14.00mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Two Switches |
Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
Gender | Female | Features | Board Guide |
Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder | Current Rating | 1A |
Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
Cable Opening | - | Body Material | - |
Body Color | Pink | Actual Diameter | 0.142" (3.60mm) |
