CWN-320-50-0000

CW Industries

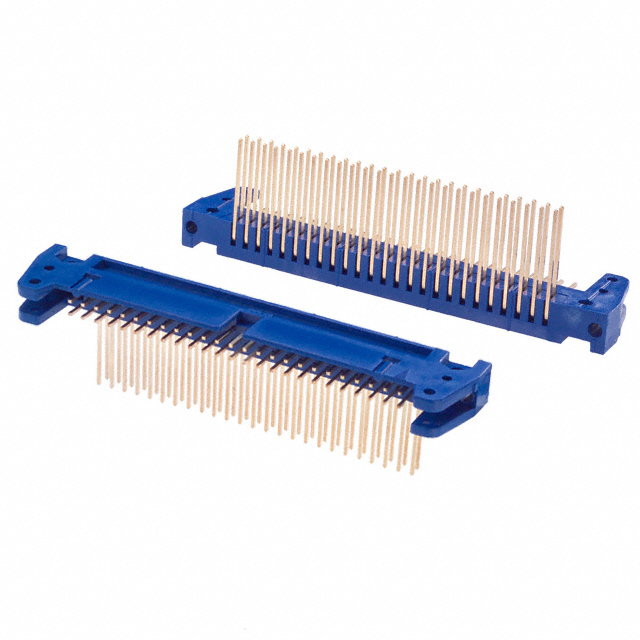

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CWN-320-50-0000
Manufacturer/Brand:	CW Industries
Product description	CONN HDR 50PIN RT ANG WIRE WRAP
Datasheets:	CWN-320-50-0000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15408 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15408 pcs

Reference Price (In US Dollars)

1 pcs: $2.402

10 pcs: $2.302

100 pcs: $1.902

500 pcs: $1.602

1000 pcs: $1.401

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.402

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CWN-320-50-0000

Part Number	CWN-320-50-0000	Manufacturer	CW Industries
Description	CONN HDR 50PIN RT ANG WIRE WRAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15408 pcs	Data sheet	CWN-320-50-0000.pdf
Voltage Rating	-	Termination	Wire Wrap
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CWN	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	CHA50G CWN320500000 IDH-50K-WR-T R264
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	50
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic
Insulation Height	0.291" (7.40mm)	Insulation Color	Blue
Ingress Protection	-	Features	Keying Slot, Mounting Flange
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
Current Rating	1A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	0.610" (15.49mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	50.0µin (1.27µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Nickel	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
