AN101101

Cherry Switches (ZF Electronics)

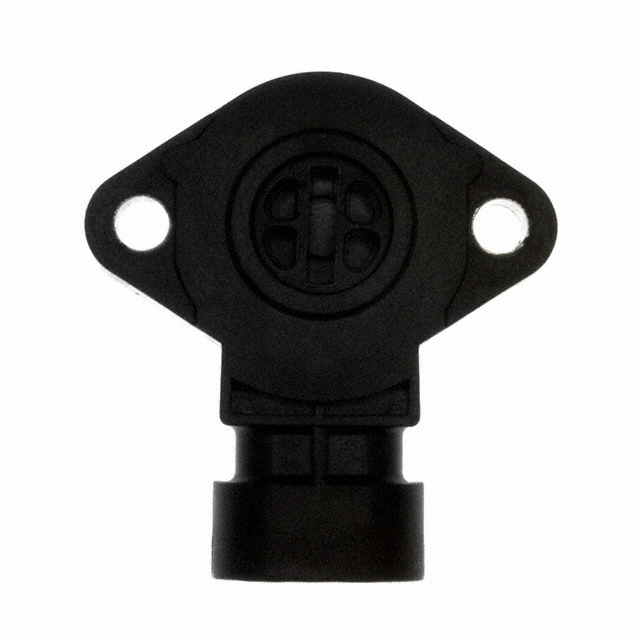

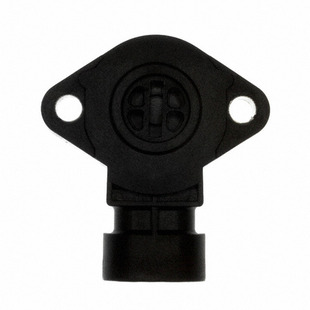

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AN101101
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SENSOR ROTARY 120 DEG CONNECTOR
Datasheets:	1.AN101101.pdf 2.AN101101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2959 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2959 pcs

Reference Price (In US Dollars)

1 pcs: $12.563

10 pcs: $10.851

25 pcs: $9.994

50 pcs: $8.852

100 pcs: $8.566

250 pcs: $8.281

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.563

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AN101101

Part Number	AN101101	Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ROTARY 120 DEG CONNECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2959 pcs	Data sheet	1.AN101101.pdf 2.AN101101.pdf
Voltage - Supply	5V	Termination Style	Connector
Technology	Magnetoresistive	Supplier Device Package	-
Series	AN1	Rotation Angle - Electrical, Mechanical	5° ~ 85°, 0° ~ 120°
Resistance Tolerance	-	Packaging	Bulk
Package / Case	Module	Output Signal	Counterclockwise Increase
Output	Analog Voltage	Other Names	AN101101-ND CH925
Operating Temperature	-40°C ~ 125°C	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Linearity	±2%
Linear Range	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
For Measuring	Rotary Position	Detailed Description	Magnetoresistive Sensor Rotary Position Slotted Shaft Connector
Actuator Type	Slotted Shaft
