ANG-21HAW1

Cherry Switches (ZF Electronics)

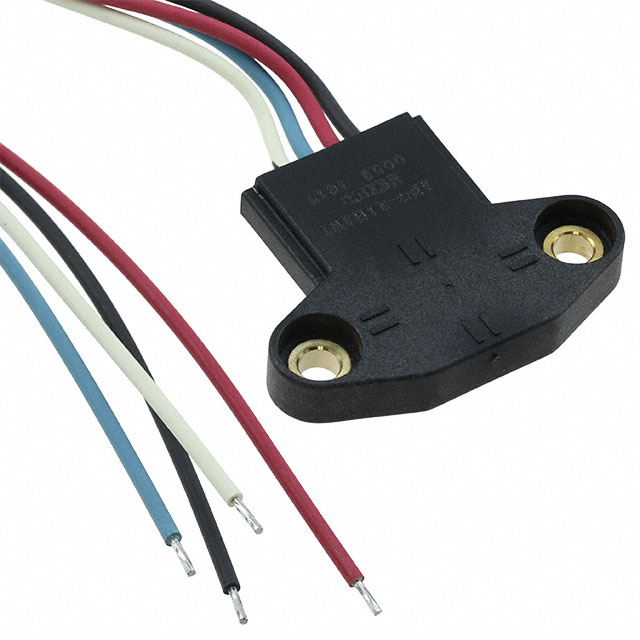

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ANG-21HAW1
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SENSOR ANGLE 360DEG WIRE LEADS
Datasheets:	ANG-21HAW1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2698 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2698 pcs

Reference Price (In US Dollars)

1 pcs: $13.29

10 pcs: $11.478

25 pcs: $10.572

50 pcs: $9.364

100 pcs: $9.061

250 pcs: $8.759

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$13.29

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ANG-21HAW1

Part Number	ANG-21HAW1	Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ANGLE 360DEG WIRE LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2698 pcs	Data sheet	ANG-21HAW1.pdf
Voltage - Supply	5V	Termination Style	Wire Leads
Technology	Hall Effect	Supplier Device Package	-
Series	ANG	Rotation Angle - Electrical, Mechanical	0° ~ 360°, Continuous
Resistance Tolerance	-	Packaging	Bulk
Package / Case	Module	Output Signal	Counterclockwise Increase
Output	Analog Voltage	Other Names	CH1000
Operating Temperature	-40°C ~ 140°C	Mounting Type	Chassis Mount
Linearity	±1%	Linear Range	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Measuring	Angle
Detailed Description	Hall Effect Sensor Angle External Magnet, Not Included Wire Leads	Actuator Type	External Magnet, Not Included
