DG13-B1RA

Cherry Switches (ZF Electronics)

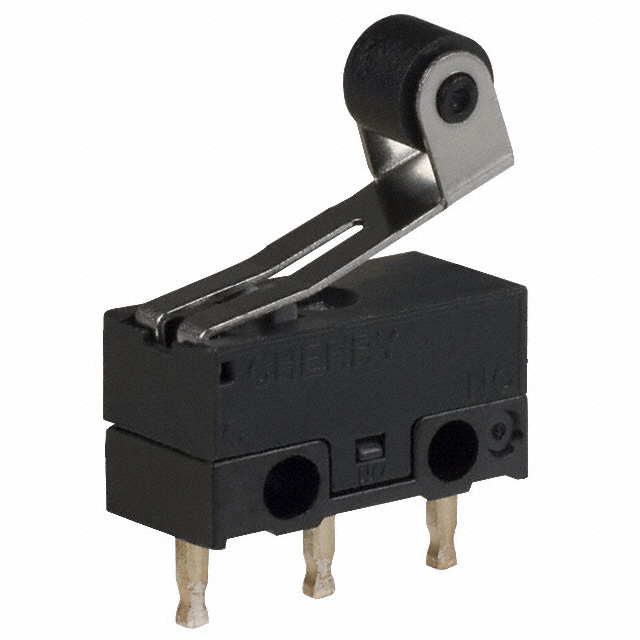

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DG13-B1RA
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 3A 125V
Datasheets:	DG13-B1RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23835 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23835 pcs

Reference Price (In US Dollars)

1 pcs: $1.531

10 pcs: $1.351

25 pcs: $1.261

50 pcs: $1.201

100 pcs: $1.021

250 pcs: $0.931

500 pcs: $0.871

1000 pcs: $0.841

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.531

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DG13-B1RA

Part Number	DG13-B1RA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23835 pcs	Data sheet	DG13-B1RA.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	DG	Release Force	-
Pretravel	0.060" (1.5mm)	Packaging	Bulk
Overtravel	0.022" (0.55mm)	Other Names	CH166 DG13B1RA DG1C-B1RA
Operating Temperature	-25°C ~ 85°C	Operating Position	0.488" (12.4mm)
Operating Force	60gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	10,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	3A (AC), 2A (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
