KDH3ANA1BBB

Cherry Switches (ZF Electronics)

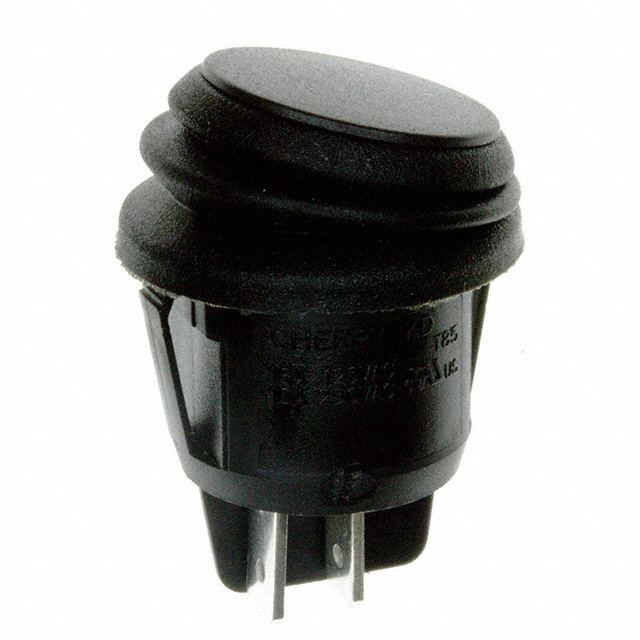

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KDH3ANA1BBB
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER DPST 16A 125V
Datasheets:	KDH3ANA1BBB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25033 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25033 pcs

Reference Price (In US Dollars)

1 pcs: $1.489

10 pcs: $1.453

25 pcs: $1.384

50 pcs: $1.315

100 pcs: $1.245

250 pcs: $1.211

500 pcs: $1.176

1000 pcs: $1.038

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.489

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KDH3ANA1BBB

Part Number	KDH3ANA1BBB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25033 pcs	Data sheet	KDH3ANA1BBB.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	KD	Panel Cutout Dimensions	Circular - 20.00mm Dia
Packaging	Bulk	Other Names	CH938
Operating Temperature	-25°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch DPST 16A (AC), 10A (DC) 125V Panel Mount, Snap-In	Current Rating	16A (AC), 10A (DC)
Color - Actuator/Cap	Black	Circuit	DPST
Actuator Type	Round	Actuator Marking	No Marking
