KGC2ANB1BBD

Cherry Switches (ZF Electronics)

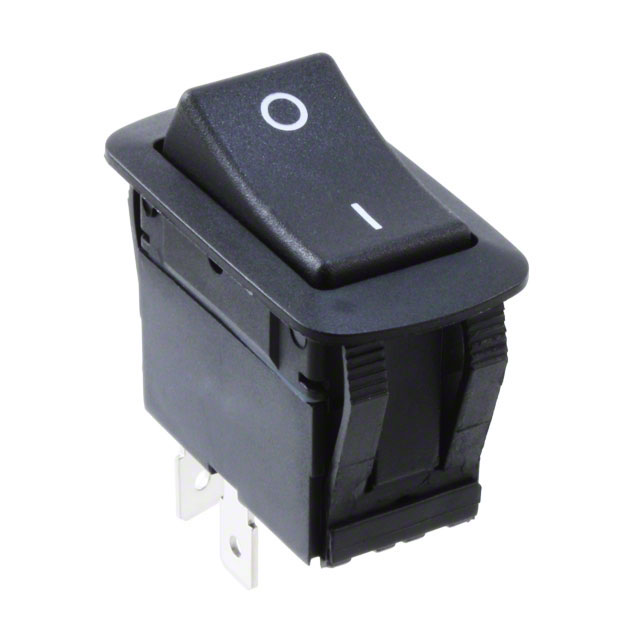

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KGC2ANB1BBD
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER SPST 20A 125V
Datasheets:	KGC2ANB1BBD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16251 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16251 pcs

Reference Price (In US Dollars)

1 pcs: $1.844

10 pcs: $1.756

25 pcs: $1.668

50 pcs: $1.58

100 pcs: $1.559

250 pcs: $1.515

500 pcs: $1.449

1000 pcs: $1.273

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.844

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KGC2ANB1BBD

Part Number	KGC2ANB1BBD	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16251 pcs	Data sheet	KGC2ANB1BBD.pdf
Voltage Rating - DC	14V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	KG	Panel Cutout Dimensions	Rectangular - 36.60mm x 21.20mm
Packaging	Bulk	Other Names	CH949
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP56 - Dust Protected, Water Resistant
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch SPST 20A (AC), 21A (DC) 125V Panel Mount, Snap-In	Current Rating	20A (AC), 21A (DC)
Color - Actuator/Cap	Black	Circuit	SPST
Actuator Type	Concave (Curved)	Actuator Marking	O -
