Chip Quik, Inc.

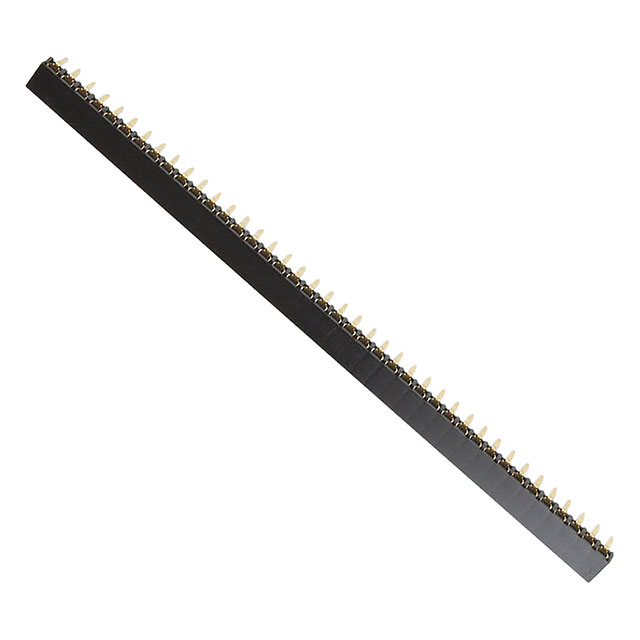

| Part Number | HDR100IMP40F-G-RA-TH | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | 0.1" 40 PIN RIGHT ANGLE FEMALE H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111882 pcs | Data sheet | HDR100IMP40F-G-RA-TH.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Proto-Advantage |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.098" (2.50mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 40 Position Header Connector Through Hole, Right Angle | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
