PA0191-S

Chip Quik, Inc.

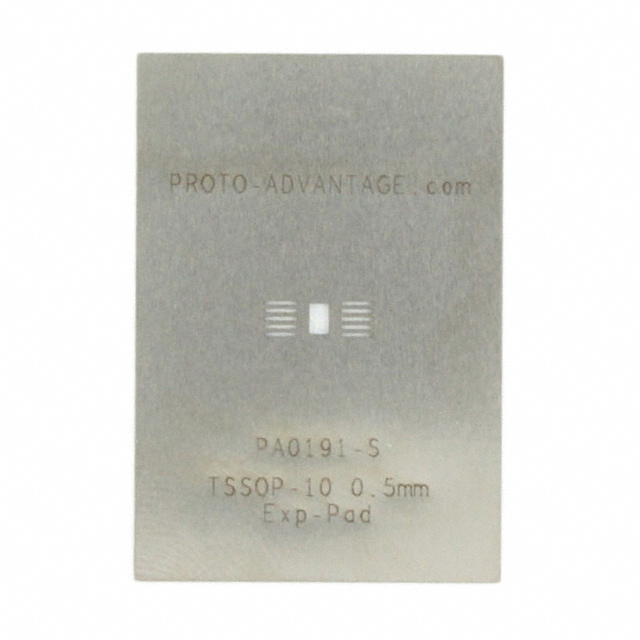

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0191-S
Manufacturer/Brand:	Chip Quik, Inc.
Product description	TSSOP-10-EXP-PAD STENCIL
Datasheets:	1.PA0191-S.pdf 2.PA0191-S.pdf 3.PA0191-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7493 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7493 pcs

Reference Price (In US Dollars)

1 pcs: $4.071

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.071

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0191-S

Part Number	PA0191-S	Manufacturer	Chip Quik, Inc.
Description	TSSOP-10-EXP-PAD STENCIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7493 pcs	Data sheet	1.PA0191-S.pdf 2.PA0191-S.pdf 3.PA0191-S.pdf
Type	TSSOP	Thickness	0.0040" (0.102mm)
Thermal Center Pad	0.069" L x 0.354" W (1.75mm x 9.00mm)	Series	Proto-Advantage
Pitch	0.020" (0.50mm)	Outer Dimension	0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions	10	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	Stainless Steel	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inner Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
