8G2016-Z

Copal Electronics

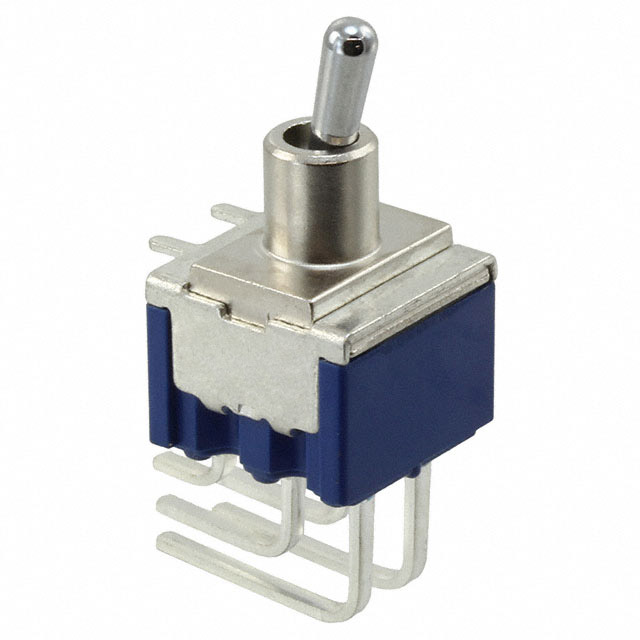

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8G2016-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH TOGGLE DPDT 6A 125V
Datasheets:	8G2016-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8024 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8024 pcs

Reference Price (In US Dollars)

1 pcs: $3.625

10 pcs: $3.529

25 pcs: $3.433

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.625

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8G2016-Z

Part Number	8G2016-Z	Manufacturer	Copal Electronics
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8024 pcs	Data sheet	8G2016-Z.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-On
Series	8G	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	563-1726
Operating Temperature	-25°C ~ 80°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Washable	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole, Right Angle, Vertical	Current Rating	6A (AC), 4A (DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	-
Actuator Length	6.80mm
