CVS-03TB

Copal Electronics

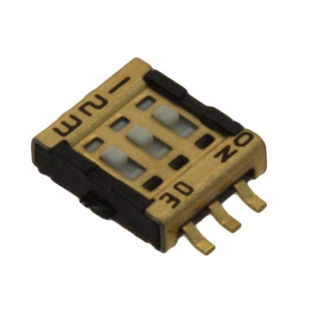

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CVS-03TB
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH SLIDE DIP SPST 100MA 6V
Datasheets:	CVS-03TB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35684 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 35684 pcs

Reference Price (In US Dollars)

1 pcs: $1.012

10 pcs: $0.97

25 pcs: $0.928

50 pcs: $0.886

100 pcs: $0.781

250 pcs: $0.738

500 pcs: $0.717

1000 pcs: $0.612

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.012

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CVS-03TB

Part Number	CVS-03TB	Manufacturer	Copal Electronics
Description	SWITCH SLIDE DIP SPST 100MA 6V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35684 pcs	Data sheet	CVS-03TB.pdf
Washable	No	Voltage Rating	6VDC
Termination Style	Gull Wing	Series	CVS
Pitch	0.039" (1.00mm)	Packaging	Cut Tape (CT)
Other Names	563-1194-1	Operating Temperature	-40°C ~ 85°C
Number of Positions	3	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Length	0.157" (4.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.057" (1.45mm)	Features	-
Electrical Life	1,000 Cycles	Detailed Description	Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Current Rating	100mA	Contact Material	Stainless Steel
Contact Finish	Gold	Circuit	SPST
Body Material	Polyphenylene Sulfide (PPS)	Actuator Type	Slide (Standard)
Actuator Level	Raised
