TL1220S1BBBRN

E-Switch

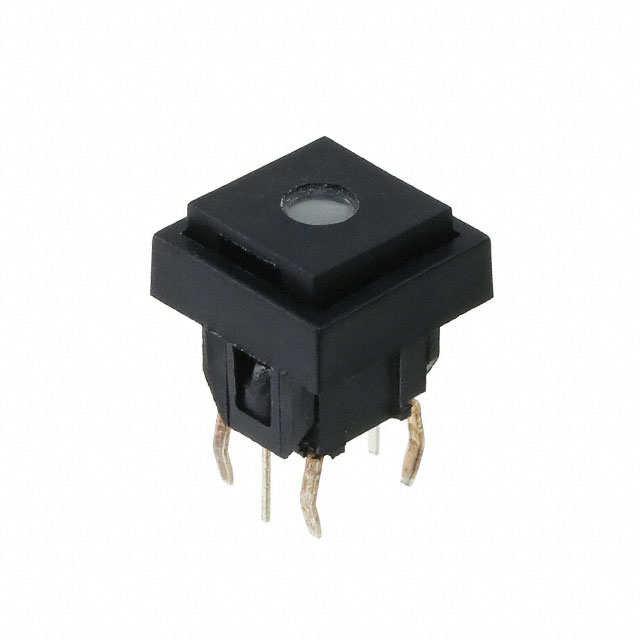

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL1220S1BBBRN
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets:	1.TL1220S1BBBRN.pdf 2.TL1220S1BBBRN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32430 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 32430 pcs

Reference Price (In US Dollars)

1 pcs: $0.997

10 pcs: $0.96

25 pcs: $0.883

50 pcs: $0.768

100 pcs: $0.729

250 pcs: $0.71

500 pcs: $0.691

1000 pcs: $0.537

5000 pcs: $0.499

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.997

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL1220S1BBBRN

Part Number	TL1220S1BBBRN	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32430 pcs	Data sheet	1.TL1220S1BBBRN.pdf 2.TL1220S1BBBRN.pdf
Termination Style	PC Pin	Switch Travel	0.20mm
Switch Function	Off-Mom	Series	TL1220
Packaging	Tray	Outline	7.60mm x 6.00mm
Other Names	EG5456 TL1220S1BBBRN-ND	Operating Temperature	-40°C ~ 85°C
Operating Force	180gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.3 VDC	Illumination Type, Color	LED, Red
Illumination	Illuminated	Features	Tactile Feedback
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 12VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	9.90mm
