Everlight Electronics

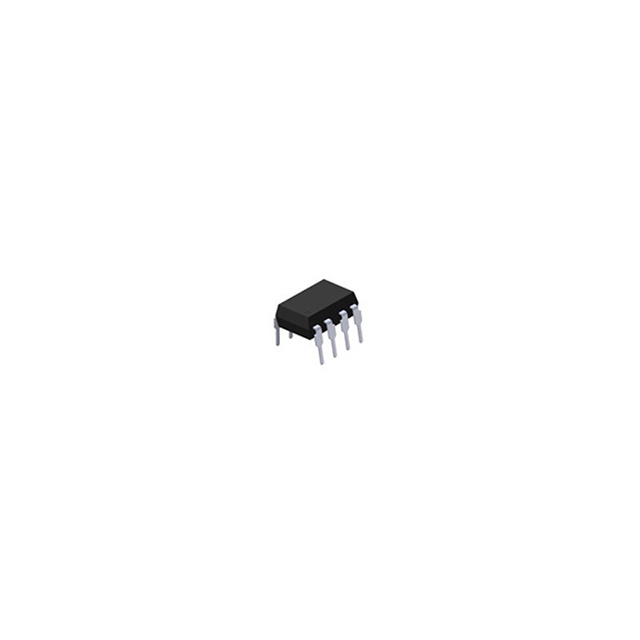

| Part Number | EL2630 | Manufacturer | Everlight Electronics |
|---|---|---|---|
| Description | OPTOISO 5KV OPEN COLLECTOR 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53596 pcs | Data sheet | EL2630.pdf |
| Voltage - Supply | 7V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.4V | Supplier Device Package | 8-DIP |
| Series | - | Rise / Fall Time (Typ) | 40ns, 10ns |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | Packaging | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) | Output Type | Open Collector |
| Other Names | 1080-1488 C180000062 EL2630-ND |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 2/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 5kV/µs CMTI 8-DIP | Data Rate | 10Mbps |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 20mA |
| Common Mode Transient Immunity (Min) | 5kV/µs |
