19001-04UL

Grayhill, Inc.

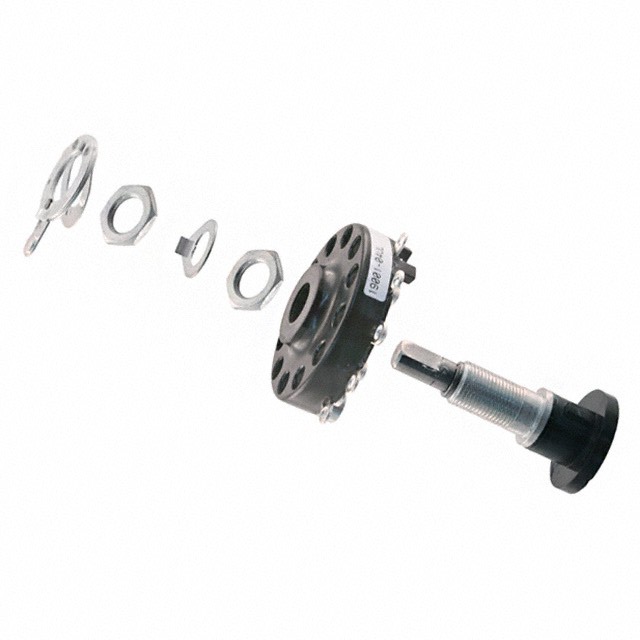

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19001-04UL
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH ROTARY 4POS 15A 120V
Datasheets:	19001-04UL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2973 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2973 pcs

Reference Price (In US Dollars)

1 pcs: $12.591

10 pcs: $11.729

25 pcs: $11.556

50 pcs: $11.384

100 pcs: $10.004

250 pcs: $9.659

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.591

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19001-04UL

Part Number	19001-04UL	Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 4POS 15A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2973 pcs	Data sheet	19001-04UL.pdf
Voltage Rating - DC	120V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Series	19
Panel Cutout Dimensions	-	Other Names	1900104UL GH7283
Operating Force	8.641 ~ 26gfm	Number of Positions	4
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 4 Position SP4T 15A (AC), 1A (DC) 120VAC Panel Mount
Depth Behind Panel	24.13mm	Current Rating	15A (AC), 1A (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	-	Circuit per Deck	SP4T
Angle of Throw	30°	Actuator Type	Flatted (6.35mm Dia)
Actuator Length	12.70mm
