19101-08UL

Grayhill, Inc.

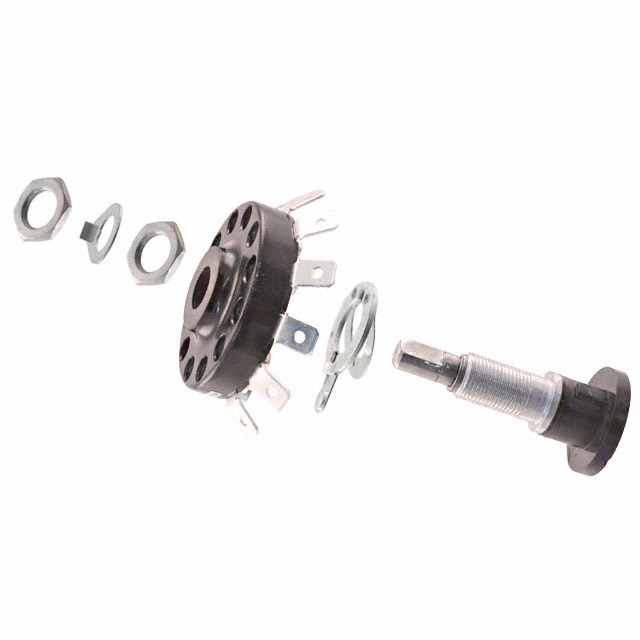

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19101-08UL
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH ROTARY 8POS 15A 120V
Datasheets:	19101-08UL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2073 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2073 pcs

Reference Price (In US Dollars)

1 pcs: $14.428

10 pcs: $13.811

25 pcs: $13.605

50 pcs: $13.193

100 pcs: $11.75

250 pcs: $11.338

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.428

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19101-08UL

Part Number	19101-08UL	Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 8POS 15A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2073 pcs	Data sheet	19101-08UL.pdf
Voltage Rating - DC	120V	Voltage Rating - AC	120V
Termination Style	Quick Connect - 0.250" (6.3mm)	Series	19
Panel Cutout Dimensions	-	Other Names	1910108UL GH7289
Operating Force	8.641 ~ 26gfm	Number of Positions	8
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 8 Position SP8T 15A (AC), 1A (DC) 120VAC Panel Mount
Depth Behind Panel	24.13mm	Current Rating	15A (AC), 1A (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	-	Circuit per Deck	SP8T
Angle of Throw	30°	Actuator Type	Flatted (6.35mm Dia)
Actuator Length	12.70mm
