71AD36-01-2-AJN

Grayhill, Inc.

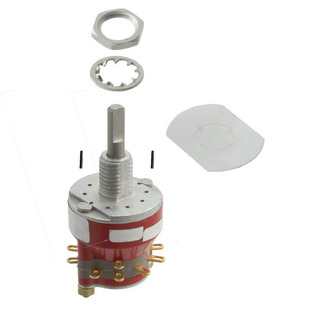

Image may be representation. See specifications for product details.

Product Overview

Part Number:	71AD36-01-2-AJN
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH ROTARY 2-5POS 250MA 115V
Datasheets:	71AD36-01-2-AJN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5531 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5531 pcs

Reference Price (In US Dollars)

1 pcs: $6.684

10 pcs: $6.234

25 pcs: $6.143

50 pcs: $6.053

100 pcs: $5.33

250 pcs: $5.15

500 pcs: $5.059

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$6.684

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 71AD36-01-2-AJN

Part Number	71AD36-01-2-AJN	Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 2-5POS 250MA 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5531 pcs	Data sheet	71AD36-01-2-AJN.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	115V
Termination Style	Solder Lug	Series	71
Panel Cutout Dimensions	-	Other Names	71AD36012AJN GH7323
Operating Force	2.880 ~ 23gfm	Number of Positions	2 ~ 5
Number of Poles per Deck	2	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Adjustable
Features	-	Detailed Description	Rotary Switch 2 ~ 5 Position DP5T 250mA (AC/DC) 115VAC Panel Mount
Depth Behind Panel	19.33mm	Current Rating	250mA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	-	Circuit per Deck	DP5T
Angle of Throw	36°	Actuator Type	Flatted (3.17mm Dia)
Actuator Length	9.53mm
