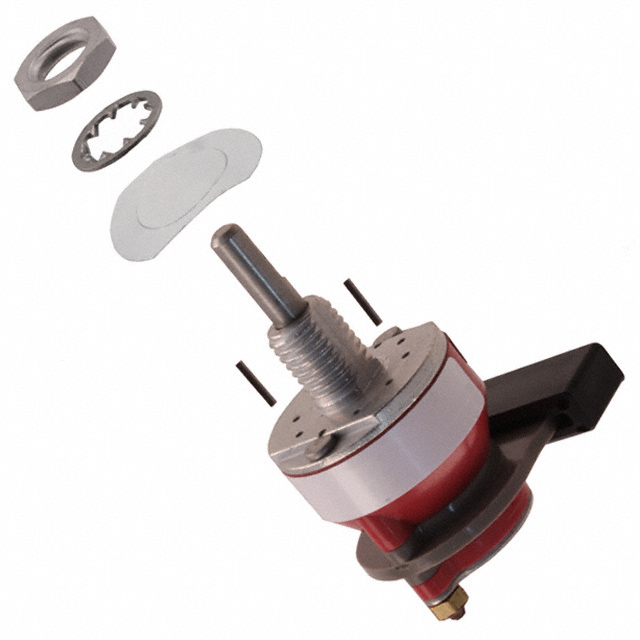

Part Number | 71ADF36-01-1-AJN | Manufacturer | Grayhill, Inc. |
---|---|---|---|
Description | SWITCH ROTARY 2-10POS 250MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4064 pcs | Data sheet | 71ADF36-01-1-AJN.pdf |
Voltage Rating - DC | 30V | Voltage Rating - AC | 115V |
Termination Style | PC Pin | Series | 71 |
Panel Cutout Dimensions | - | Other Names | 71ADF36-01PAJN 71ADF3601PAJN GH7330 |
Operating Force | 2.880 ~ 23gfm | Number of Positions | 2 ~ 10 |
Number of Poles per Deck | 1 | Number of Decks | 1 |
Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Adjustable |
Features | - | Detailed Description | Rotary Switch 2 ~ 10 Position SP10T 250mA (AC/DC) 115VAC Panel Mount, Through Hole, Right Angle |
Depth Behind Panel | 19.33mm | Current Rating | 250mA (AC/DC) |
Contact Timing | Non-Shorting (BBM) | Contact Material | Silver Alloy |
Contact Finish | - | Circuit per Deck | SP10T |
Angle of Throw | 36° | Actuator Type | Flatted (3.17mm Dia) |
Actuator Length | 9.53mm |
