75AP36-01-1-06N

Grayhill, Inc.

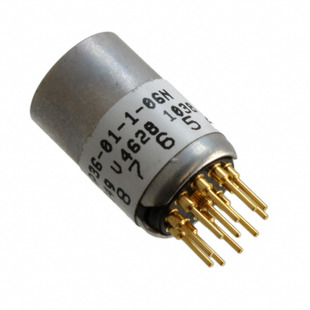

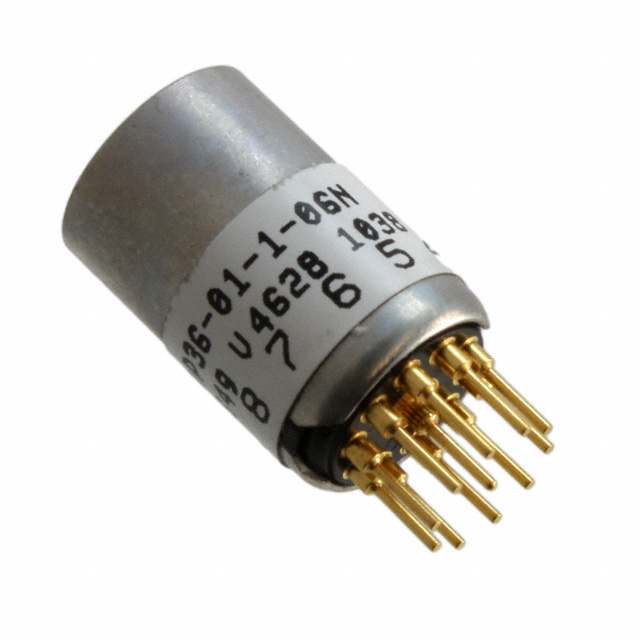

Image may be representation. See specifications for product details.

Product Overview

Part Number:	75AP36-01-1-06N
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH ROTARY 6POS 200MA 115V
Datasheets:	75AP36-01-1-06N.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4084 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4084 pcs

Reference Price (In US Dollars)

1 pcs: $9.16

10 pcs: $8.541

25 pcs: $8.418

50 pcs: $8.294

100 pcs: $7.303

250 pcs: $7.056

500 pcs: $6.932

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.16

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 75AP36-01-1-06N

Part Number	75AP36-01-1-06N	Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 6POS 200MA 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4084 pcs	Data sheet	75AP36-01-1-06N.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	115V
Termination Style	PC Pin	Series	75
Panel Cutout Dimensions	-	Other Names	75AP36-01-1-06N-ND 75AP3601106N GH7361
Operating Force	-	Number of Positions	6
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 6 Position SP6T 200mA (AC/DC) 115VAC Through Hole
Depth Behind Panel	12.42mm	Current Rating	200mA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Finish	Gold	Circuit per Deck	SP6T
Angle of Throw	36°	Actuator Type	Screwdriver Slot
Actuator Length	Flush
