76PSB02T

Grayhill, Inc.Grayhill, Inc.

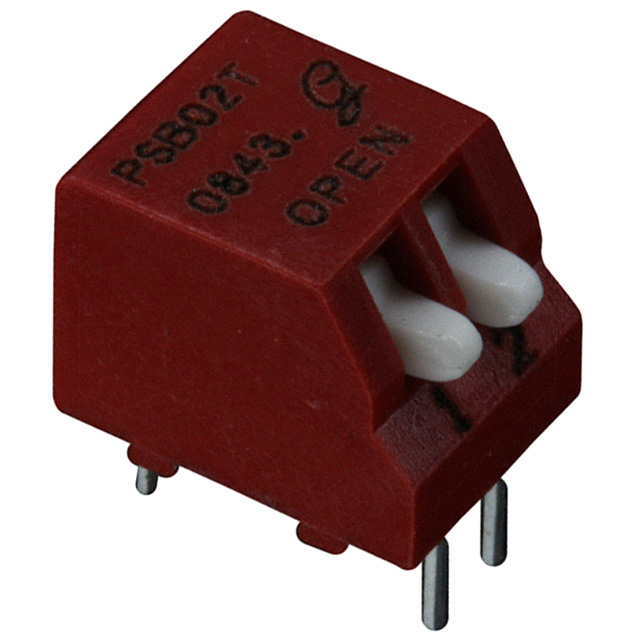

76PSB02T Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 76PSB02T
Manufacturer/Brand: Grayhill, Inc.
Product description SWITCH PIANO DIP SPST 150MA 30V
Datasheets: 76PSB02T.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 59905 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 59905 pcs
Reference Price (In US Dollars)
1 pcs
$0.481
10 pcs
$0.452
35 pcs
$0.433
70 pcs
$0.406
105 pcs
$0.396
280 pcs
$0.35
525 pcs
$0.332
1015 pcs
$0.295
5005 pcs
$0.258
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.481

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 76PSB02T

Part Number 76PSB02T Manufacturer Grayhill, Inc.
Description SWITCH PIANO DIP SPST 150MA 30V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 59905 pcs Data sheet 76PSB02T.pdf
Washable No Voltage Rating 30VDC
Termination Style PC Pin Series 76
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names GH7132 Operating Temperature -40°C ~ 85°C
Number of Positions 2 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 2,000 Cycles
Length 0.280" (7.11mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height Above Board 0.301" (7.65mm) Features -
Electrical Life 2,000 Cycles Detailed Description Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC
Current Rating 150mA Contact Material Copper Alloy
Contact Finish Gold Circuit SPST
Body Material Thermoplastic Actuator Type Piano
Actuator Level Raised
