77SP36-01-1-10N-F

Grayhill, Inc.Grayhill, Inc.

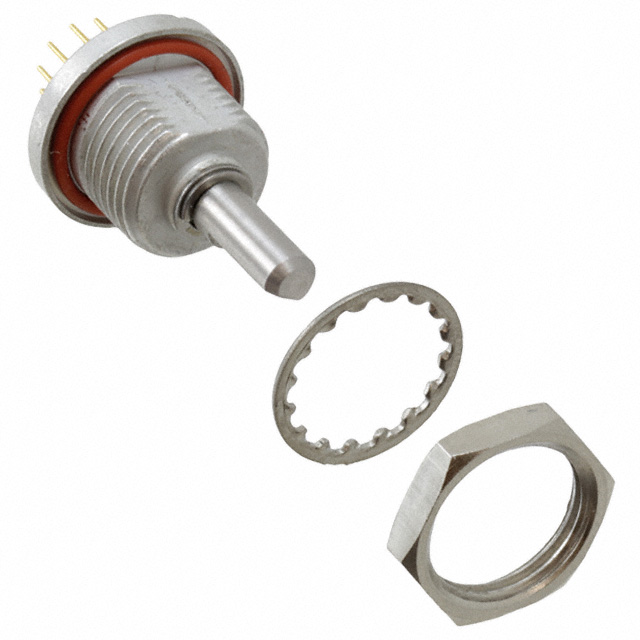

77SP36-01-1-10N-F Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 77SP36-01-1-10N-F
Manufacturer/Brand: Grayhill, Inc.
Product description SWITCH ROTARY 10POS 50MA 115V
Datasheets: 77SP36-01-1-10N-F.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 2674 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 2674 pcs
Reference Price (In US Dollars)
1 pcs
$12.661
10 pcs
$11.793
25 pcs
$11.619
50 pcs
$11.446
100 pcs
$10.059
250 pcs
$9.712
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$12.661

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 77SP36-01-1-10N-F

Part Number 77SP36-01-1-10N-F Manufacturer Grayhill, Inc.
Description SWITCH ROTARY 10POS 50MA 115V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 2674 pcs Data sheet 77SP36-01-1-10N-F.pdf
Voltage Rating - DC 28V Voltage Rating - AC 115V
Termination Style PC Pin Series 77
Panel Cutout Dimensions Circular - 9.53mm Dia Other Names 77SP36-01B10N
77SP36-01B10N-ND
GH7568
Operating Force - Number of Positions 10
Number of Poles per Deck 1 Number of Decks 1
Mounting Type Panel Mount, Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Index Stops Fixed
Features Shaft and Panel Sealed Detailed Description Rotary Switch 10 Position SP10T 50mA (AC), 200mA (DC) 115VAC Panel Mount, Through Hole
Depth Behind Panel 4.57mm Current Rating 50mA (AC), 200mA (DC)
Contact Timing Non-Shorting (BBM) Contact Material Silver Cadmium Oxide (AgCdO)
Contact Finish Gold Circuit per Deck SP10T
Angle of Throw 36° Actuator Type Flatted (3.17mm Dia)
Actuator Length 7.98mm
