MG1250H-XN2MM

Hamlin / Littelfuse

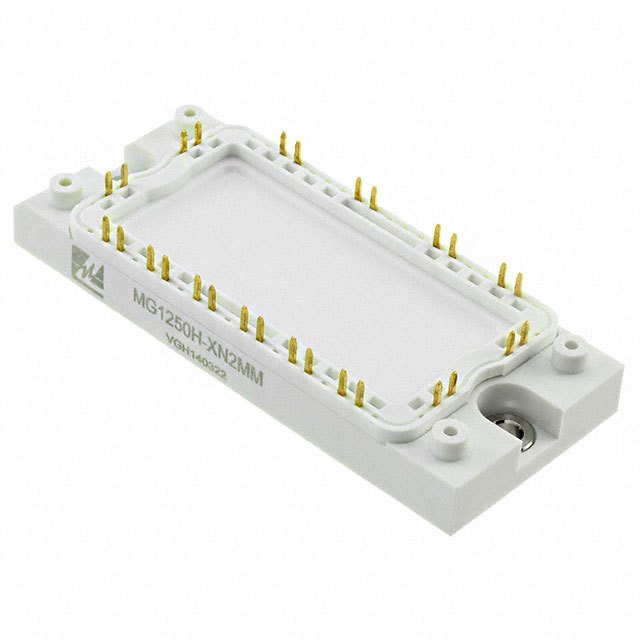

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MG1250H-XN2MM
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	IGBT MOD 1200V 50A PKG H CRCT:X
Datasheets:	MG1250H-XN2MM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	885 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 885 pcs

Reference Price (In US Dollars)

80 pcs: $32.203

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$32.203

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MG1250H-XN2MM

Part Number	MG1250H-XN2MM	Manufacturer	Hamlin / Littelfuse
Description	IGBT MOD 1200V 50A PKG H CRCT:X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	885 pcs	Data sheet	MG1250H-XN2MM.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 50A (Typ)
Supplier Device Package	Module	Series	-
Power - Max	260W	Package / Case	Module
Other Names	F6702 MG1250H-XN2MM-ND	Operating Temperature	-40°C ~ 125°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	3.6nF @ 25V	Input	Standard
IGBT Type	Trench Field Stop	Detailed Description	IGBT Module Trench Field Stop Three Phase Inverter 1200V 75A 260W Chassis Mount Module
Current - Collector Cutoff (Max)	1mA	Current - Collector (Ic) (Max)	75A
Configuration	Three Phase Inverter
