125ESE

Hammond ManufacturingHammond Manufacturing

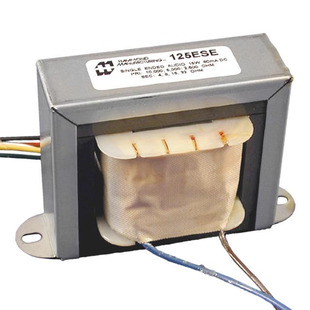

125ESE Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 125ESE
Manufacturer/Brand: Hammond Manufacturing
Product description TRANSFORMER 15W 80MA TUBE SNGL
Datasheets: 1.125ESE.pdf2.125ESE.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1290 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1290 pcs
Reference Price (In US Dollars)
1 pcs
$22.313
10 pcs
$21.568
25 pcs
$20.08
50 pcs
$18.593
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$22.313

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 125ESE

Part Number 125ESE Manufacturer Hammond Manufacturing
Description TRANSFORMER 15W 80MA TUBE SNGL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1290 pcs Data sheet 1.125ESE.pdf2.125ESE.pdf
Weight 3 lbs (1.4kg) Voltage - Isolation 1500V @ 1 Second
Turns Ratio - Primary:Secondary - Transformer Type General Purpose
Termination Style Wire Leads Size / Dimension 4.500" L x 2.360" W (114.30mm x 59.94mm)
Series 125SE Return Loss -
Power Level 15W Packaging Bulk
Other Names 125ESE-ND
HM1475
Operating Temperature -
Mounting Type Chassis Mount Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss - Impedance - Secondary (Ohms) 4 ~ 32
Impedance - Primary (Ohms) 2.5k ~ 10k Height - Seated (Max) 2.940" (74.68mm)
Frequency Response ±1dB Frequency Range 100Hz ~ 15kHz
DC Resistance (DCR) - Secondary 590 mOhm DC Resistance (DCR) - Primary 100.5 Ohm
Approvals -
