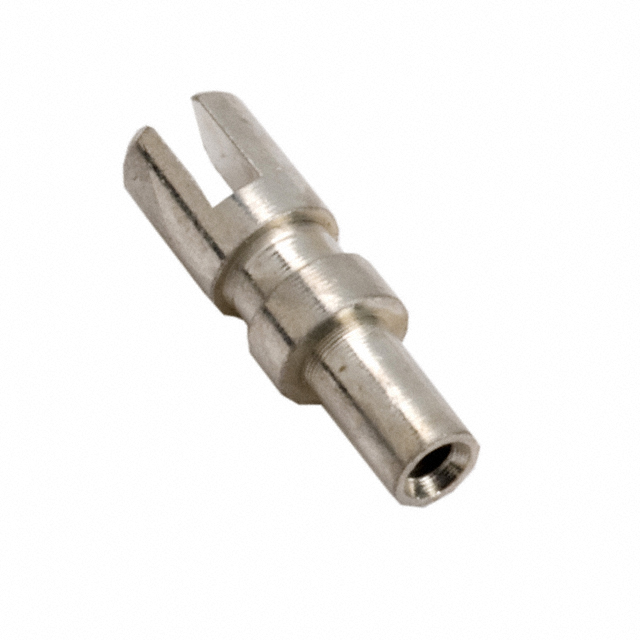

H9023-01

Harwin

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H9023-01
Manufacturer/Brand:	Harwin
Product description	TERM TURRET HOLLOW L=3.96MM TIN
Datasheets:	1.H9023-01.pdf 2.H9023-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	246490 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 246490 pcs

Reference Price (In US Dollars)

1 pcs: $0.148

10 pcs: $0.137

25 pcs: $0.123

50 pcs: $0.11

100 pcs: $0.105

250 pcs: $0.096

500 pcs: $0.091

1000 pcs: $0.075

2500 pcs: $0.068

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.148

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H9023-01

Part Number	H9023-01	Manufacturer	Harwin
Description	TERM TURRET HOLLOW L=3.96MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	246490 pcs	Data sheet	1.H9023-01.pdf 2.H9023-01.pdf
Termination	Swage	Terminal Type	Single End, Fork, Hollow
Staking Side OD	-	Staking Side ID	0.039" (1.00mm)
Series	-	Other Names	952-1454 H902301
Number of Turrets	Single	Mounting Type	Through Hole
Mounting Hole Diameter	0.050" ~ 0.054" (1.27mm ~ 1.37mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Length - Overall	0.238" (6.04mm)
Length - Below Flange	0.082" (2.08mm)	Length - Above Board	0.156" (3.96mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.072" (1.83mm)
Diameter - Turret Head	-	Detailed Description	Terminal Turret Connector Single End, Fork, Hollow 0.156" (3.96mm) Tin
Contact Material	Brass Alloy	Contact Finish Thickness	-
Contact Finish	Tin	Board Thickness	0.063" (1.60mm)
