Harwin

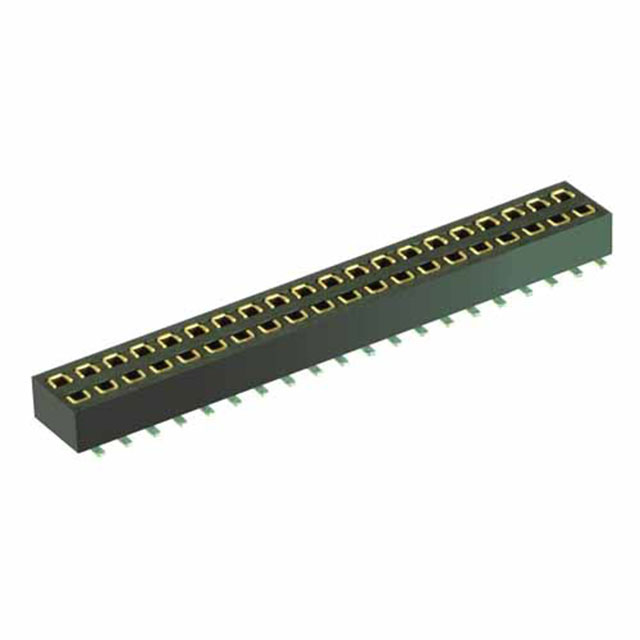

| Part Number | M50-3152042R | Manufacturer | Harwin |
|---|---|---|---|
| Description | 20+20 DIL LOW PROFILE SMT SKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32317 pcs | Data sheet | 1.M50-3152042R.pdf2.M50-3152042R.pdf3.M50-3152042R.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Other Names | 952-3494-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.087" (2.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 40 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | General Purpose, Medical, Telecommunications |
