M80-5T11205M1-02-331-00-000

Harwin

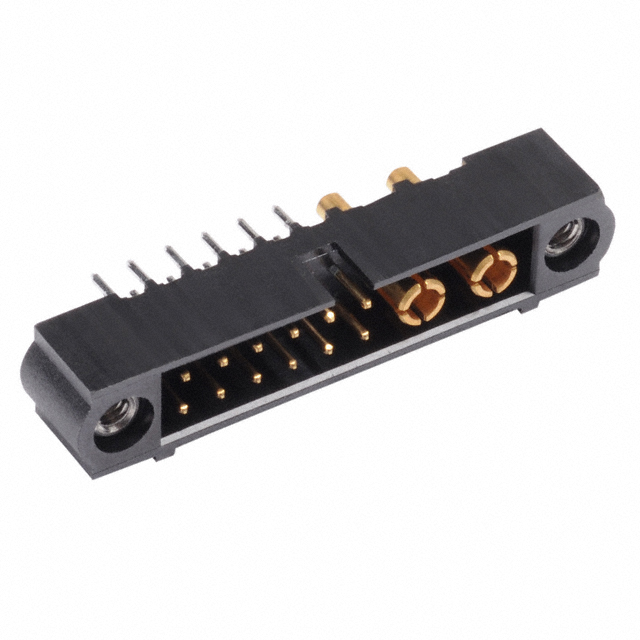

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-5T11205M1-02-331-00-000
Manufacturer/Brand:	Harwin
Product description	CONN HDR MIX-TEK 14POS GOLD
Datasheets:	1.M80-5T11205M1-02-331-00-000.pdf 2.M80-5T11205M1-02-331-00-000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4103 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4103 pcs

Reference Price (In US Dollars)

1 pcs: $7.003

16 pcs: $6.323

104 pcs: $5.49

504 pcs: $5.036

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.003

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-5T11205M1-02-331-00-000

Part Number	M80-5T11205M1-02-331-00-000	Manufacturer	Harwin
Description	CONN HDR MIX-TEK 14POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4103 pcs	Data sheet	1.M80-5T11205M1-02-331-00-000.pdf 2.M80-5T11205M1-02-331-00-000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Datamate Mix-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-1253 M805T11205M10233100000
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14 (12 + 2 Power)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.3mm, 9.75mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Insulation Height	0.220" (5.60mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Mating Flange
Fastening Type	Threaded	Detailed Description	Connector Header Through Hole 14 (12 + 2 Power) position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	-
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	-	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
