FH28D-55S-0.5SH(98)

Hirose

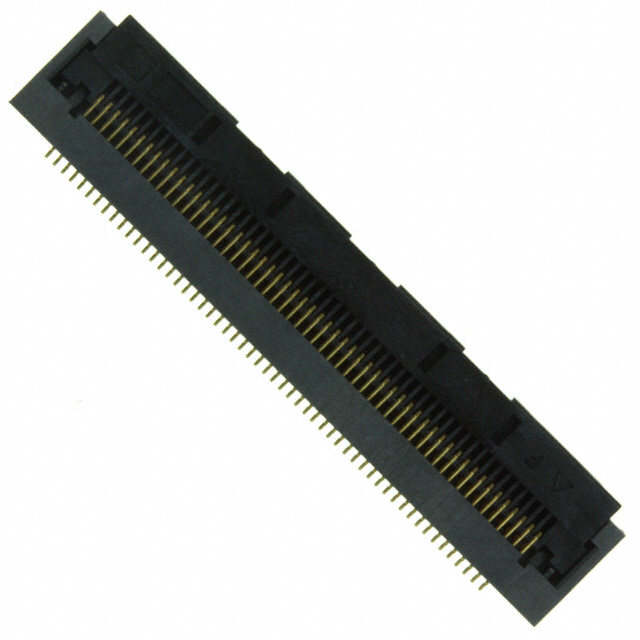

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FH28D-55S-0.5SH(98)
Manufacturer/Brand:	Hirose
Product description	CONN FFC BOTTOM 55POS 0.50MM R/A
Datasheets:	FH28D-55S-0.5SH(98).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29372 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29372 pcs

Reference Price (In US Dollars)

1 pcs: $1.092

10 pcs: $1.048

25 pcs: $0.961

50 pcs: $0.917

100 pcs: $0.873

250 pcs: $0.764

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.092

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FH28D-55S-0.5SH(98)

Part Number	FH28D-55S-0.5SH(98)	Manufacturer	Hirose
Description	CONN FFC BOTTOM 55POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29372 pcs	Data sheet	FH28D-55S-0.5SH(98).pdf
Voltage Rating	50V	Termination	Solder
Series	FH28	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	H124630DKR
Operating Temperature	-40°C ~ 105°C	Number of Positions	55
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Rotary Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free	Housing Color	Gray
Height Above Board	0.100" (2.54mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	55 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed	Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Color	Black
