Hirose

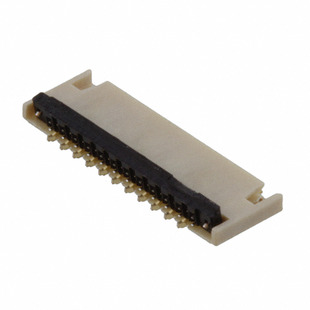

| Part Number | FH42-23S-0.3SHW(10) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC TOP 23POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91591 pcs | Data sheet | 1.FH42-23S-0.3SHW(10).pdf2.FH42-23S-0.3SHW(10).pdf3.FH42-23S-0.3SHW(10).pdf |
| Voltage Rating | 30V | Termination | Solder |
| Series | FH42 | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 23 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Beige | Height Above Board | 0.026" (0.65mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.12mm | Detailed Description | 23 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 1.18µin (0.030µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top | Cable End Type | Notched |
| Actuator Material | Polyamide (PA), Nylon | Actuator Color | Black |
