HIF3BAF-16PA-2.54DS(71)

Hirose

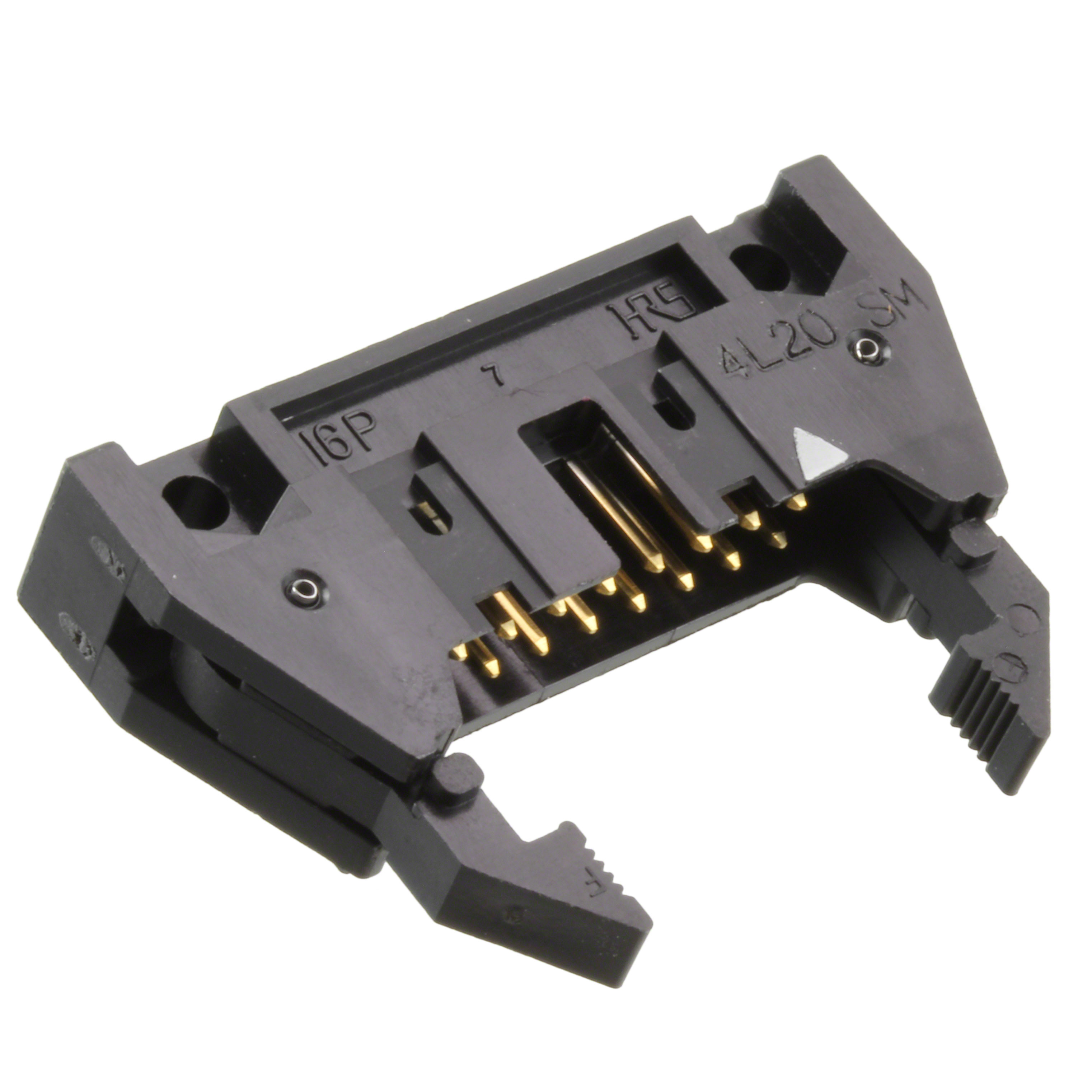

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HIF3BAF-16PA-2.54DS(71)
Manufacturer/Brand:	Hirose
Product description	CONN HEADER 16POS 2.54MM
Datasheets:	HIF3BAF-16PA-2.54DS(71).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27501 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 27501 pcs

Reference Price (In US Dollars)

1 pcs: $1.212

10 pcs: $1.163

160 pcs: $0.969

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.212

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HIF3BAF-16PA-2.54DS(71)

Part Number	HIF3BAF-16PA-2.54DS(71)	Manufacturer	Hirose
Description	CONN HEADER 16POS 2.54MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27501 pcs	Data sheet	HIF3BAF-16PA-2.54DS(71).pdf
Voltage Rating	200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	HIF3B	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	H123756 HIF3BAF-16PA-2.54DS(71)-ND
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.335" (8.51mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Mounting Flange
Fastening Type	Latch Lock/Eject Hooks	Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Current Rating	1A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	0.236" (6.00mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
