Hirose

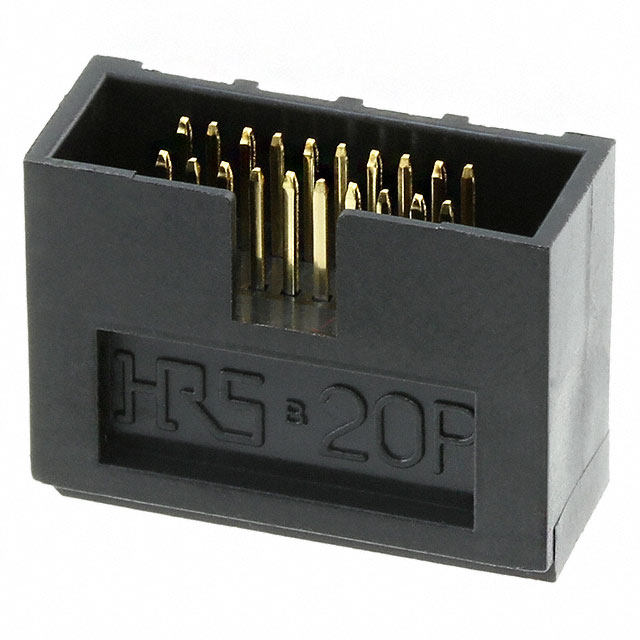

| Part Number | HIF6A-20PA-1.27DS(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 20POS 1.27MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39196 pcs | Data sheet | HIF6A-20PA-1.27DS(71).pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | HIF6 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | H123957 HIF6A-20PA-1.27DS(71)-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.205" (5.21mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
