IXTA05N100HV

IXYS Corporation

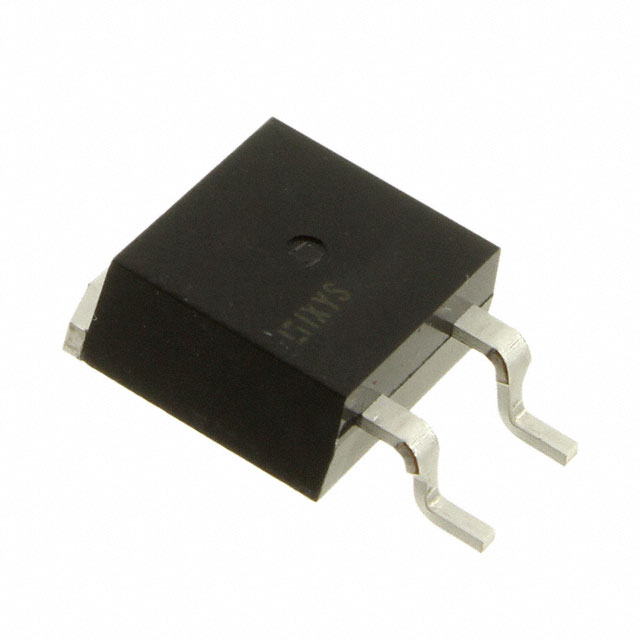

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IXTA05N100HV
Manufacturer/Brand:	IXYS Corporation
Product description	MOSFET N-CH 1KV 750MA TO263
Datasheets:	IXTA05N100HV.pdf
RoHs Status	Lead free by exemption / RoHS Compliant
Stock Condition	22620 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22620 pcs

Reference Price (In US Dollars)

1 pcs: $1.356

50 pcs: $1.091

100 pcs: $0.994

500 pcs: $0.805

1000 pcs: $0.679

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.356

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IXTA05N100HV

Part Number	IXTA05N100HV	Manufacturer	IXYS Corporation
Description	MOSFET N-CH 1KV 750MA TO263	Lead Free Status / RoHS Status	Lead free by exemption / RoHS Compliant
Quantity Available	22620 pcs	Data sheet	IXTA05N100HV.pdf
Vgs(th) (Max) @ Id	4.5V @ 250µA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-263
Series	-	Rds On (Max) @ Id, Vgs	17 Ohm @ 375mA, 10V
Power Dissipation (Max)	40W (Tc)	Packaging	Tube
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free by exemption / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	260pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	1000V	Detailed Description	N-Channel 1000V 750mA (Tc) 40W (Tc) Surface Mount TO-263
Current - Continuous Drain (Id) @ 25°C	750mA (Tc)
