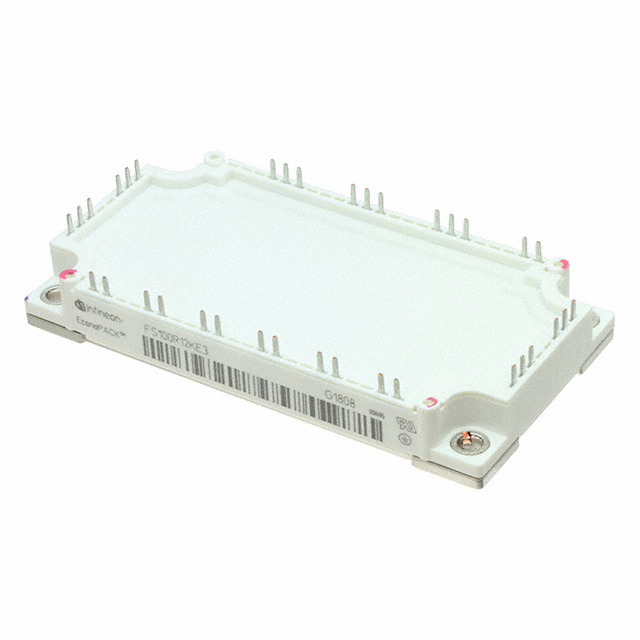

Part Number | FS100R12KE3BOSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
---|---|---|---|
Description | IGBT MODULE 1200V 100A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 635 pcs | Data sheet | FS100R12KE3BOSA1.pdf |
Voltage - Collector Emitter Breakdown (Max) | 1200V | Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 100A |
Supplier Device Package | Module | Series | - |
Power - Max | 480W | Package / Case | Module |
Other Names | FS100R12KE3 FS100R12KE3-ND SP000100416 |
Operating Temperature | -40°C ~ 125°C (TJ) |
NTC Thermistor | No | Mounting Type | Chassis Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Input Capacitance (Cies) @ Vce | 7.1nF @ 25V | Input | Standard |
IGBT Type | NPT | Detailed Description | IGBT Module NPT Single 1200V 140A 480W Chassis Mount Module |
Current - Collector Cutoff (Max) | 5mA | Current - Collector (Ic) (Max) | 140A |
Configuration | Single |
