IKY40N120CS6XKSA1

International Rectifier (Infineon Technologies)

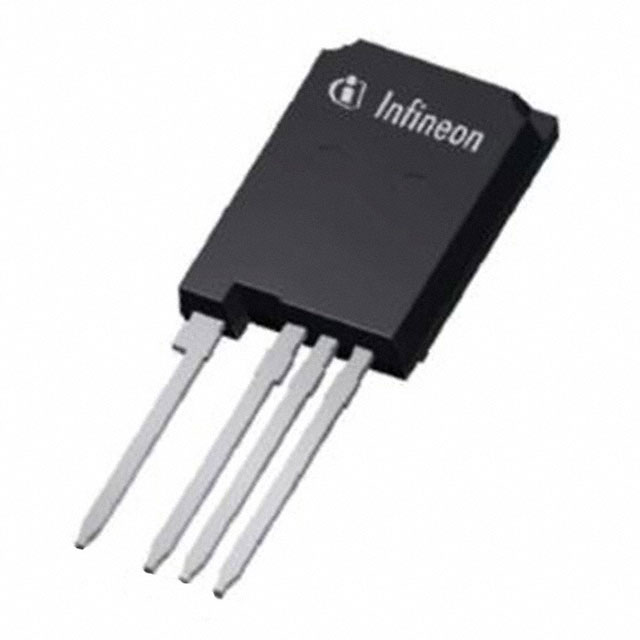

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IKY40N120CS6XKSA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IGBT 1200V 40A TO247PLUS
Datasheets:	IKY40N120CS6XKSA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6927 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6927 pcs

Reference Price (In US Dollars)

1 pcs: $4.366

10 pcs: $3.945

240 pcs: $3.266

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.366

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IKY40N120CS6XKSA1

Part Number	IKY40N120CS6XKSA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	IGBT 1200V 40A TO247PLUS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6927 pcs	Data sheet	IKY40N120CS6XKSA1.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 40A
Test Condition	600V, 40A, 9 Ohm, 15V	Td (on/off) @ 25°C	27ns/315ns
Switching Energy	1.45mJ (on), 1.55mJ (off)	Supplier Device Package	PG-TO247-4-2
Series	TrenchStop™	Reverse Recovery Time (trr)	255ns
Power - Max	500W	Packaging	Tube
Package / Case	TO-247-4	Other Names	SP001666620
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Through Hole
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	Trench Field Stop	Gate Charge	285nC
Detailed Description	IGBT Trench Field Stop 1200V 80A 500W Through Hole PG-TO247-4-2	Current - Collector Pulsed (Icm)	160A
Current - Collector (Ic) (Max)	80A
