IRF3546MTRPBF

International Rectifier (Infineon Technologies)

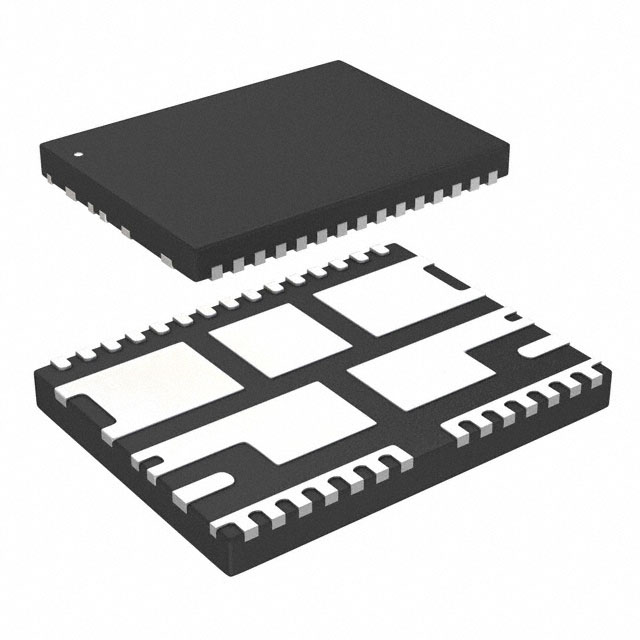

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRF3546MTRPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET 4N-CH 25V 16A/20A 41PQFN
Datasheets:	IRF3546MTRPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19704 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19704 pcs

Reference Price (In US Dollars)

3000 pcs: $1.444

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.444

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRF3546MTRPBF

Part Number	IRF3546MTRPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET 4N-CH 25V 16A/20A 41PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19704 pcs	Data sheet	IRF3546MTRPBF.pdf
Vgs(th) (Max) @ Id	2.1V @ 35µA	Supplier Device Package	41-PQFN (6x8)
Series	-	Rds On (Max) @ Id, Vgs	3.9 mOhm @ 27A, 10V
Power - Max	-	Packaging	Tape & Reel (TR)
Package / Case	41-PowerVFQFN	Other Names	IRF3546MTRPBF-ND IRF3546MTRPBFTR SP001530116
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1310pF @ 13V	Gate Charge (Qg) (Max) @ Vgs	15nC @ 4.5V
FET Type	4 N-Channel	FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V	Detailed Description	Mosfet Array 4 N-Channel 25V 16A (Tc), 20A (Tc) Surface Mount 41-PQFN (6x8)
Current - Continuous Drain (Id) @ 25°C	16A (Tc), 20A (Tc)
