TLP521-4GR

Isocom Components

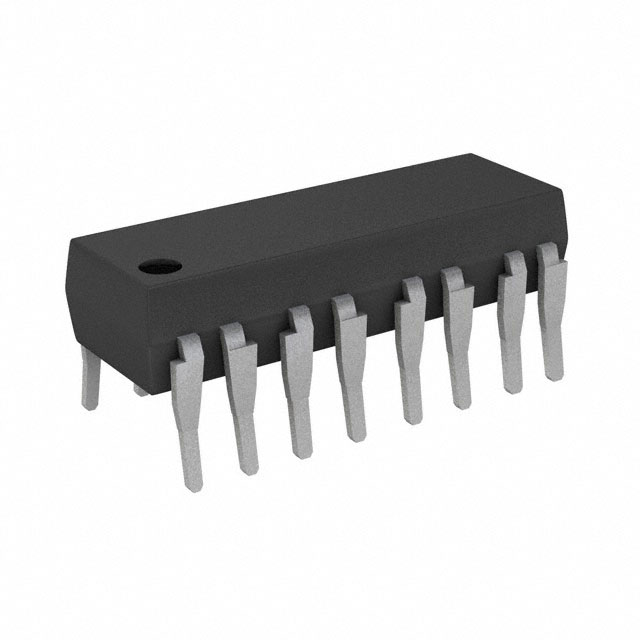

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP521-4GR
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 5.3KV 4CH TRANS 16DIP
Datasheets:	TLP521-4GR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55240 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 55240 pcs

Reference Price (In US Dollars)

1 pcs: $0.601

10 pcs: $0.489

25 pcs: $0.376

100 pcs: $0.339

400 pcs: $0.301

800 pcs: $0.226

1200 pcs: $0.211

2800 pcs: $0.20

5200 pcs: $0.196

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.601

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP521-4GR

Part Number	TLP521-4GR	Manufacturer	Isocom Components
Description	OPTOISO 5.3KV 4CH TRANS 16DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55240 pcs	Data sheet	TLP521-4GR.pdf
Voltage - Output (Max)	55V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	16-DIP
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tube	Package / Case	16-DIP (0.400", 10.16mm)
Output Type	Transistor	Operating Temperature	-30°C ~ 100°C
Number of Channels	4	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
Current Transfer Ratio (Min)	-	Current Transfer Ratio (Max)	-
Current - Output / Channel	-	Current - DC Forward (If) (Max)	50mA
