JAE Electronics, Inc.

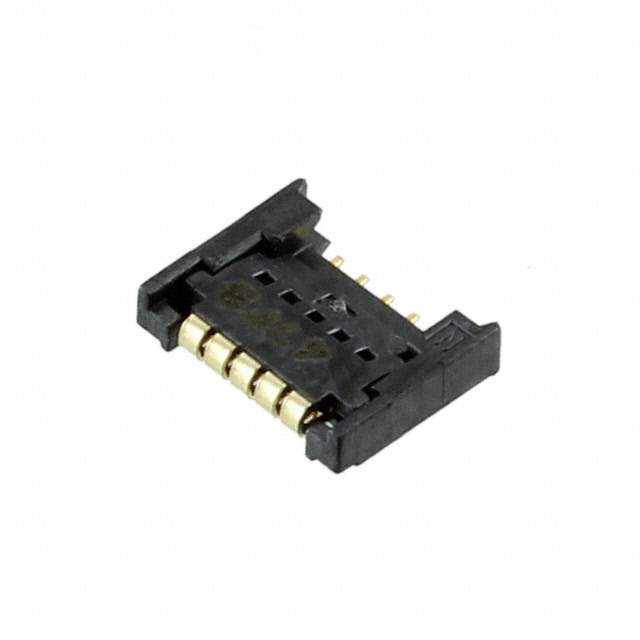

| Part Number | FA1005SA1-R8000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC 5POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79783 pcs | Data sheet | 1.FA1005SA1-R8000.pdf2.FA1005SA1-R8000.pdf3.FA1005SA1-R8000.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FA10 | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | 670-2751-1 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | Black |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 5 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tabbed | Actuator Material | Plastic |
| Actuator Color | Black |
