FI-SE20P-HFE-E3000

JAE Electronics, Inc.

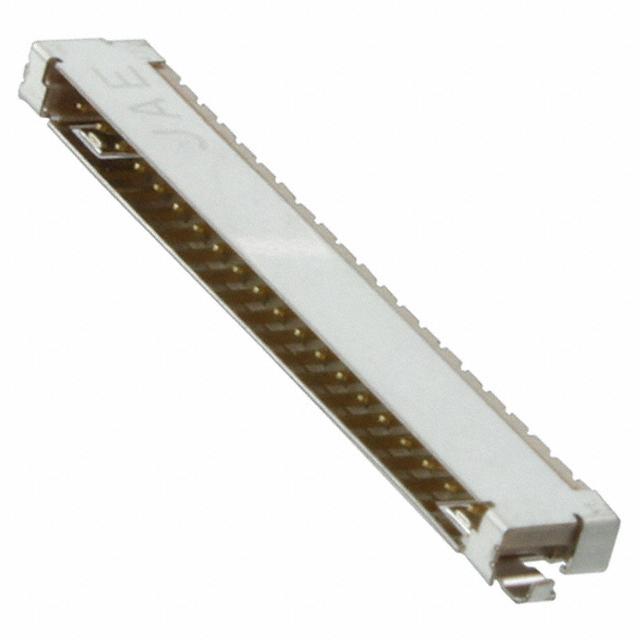

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FI-SE20P-HFE-E3000
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 1.25MM 20POS SMD R/A
Datasheets:	1.FI-SE20P-HFE-E3000.pdf 2.FI-SE20P-HFE-E3000.pdf 3.FI-SE20P-HFE-E3000.pdf 4.FI-SE20P-HFE-E3000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	43111 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 43111 pcs

Reference Price (In US Dollars)

3000 pcs: $0.776

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.776

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FI-SE20P-HFE-E3000

Part Number	FI-SE20P-HFE-E3000	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 1.25MM 20POS SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43111 pcs	Data sheet	1.FI-SE20P-HFE-E3000.pdf 2.FI-SE20P-HFE-E3000.pdf 3.FI-SE20P-HFE-E3000.pdf 4.FI-SE20P-HFE-E3000.pdf
Voltage Rating	200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	FI	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	670-2920-2 FI-SE20P-HFE-E3000-ND
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.083" (2.10mm)	Insulation Color	Beige
Ingress Protection	-	Features	Shielded, Solder Retention
Fastening Type	Friction Lock	Detailed Description	Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Current Rating	1A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin or Tin-Alloy	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	-
