JL04V-6A28-11PE-EB-R

JAE Electronics, Inc.

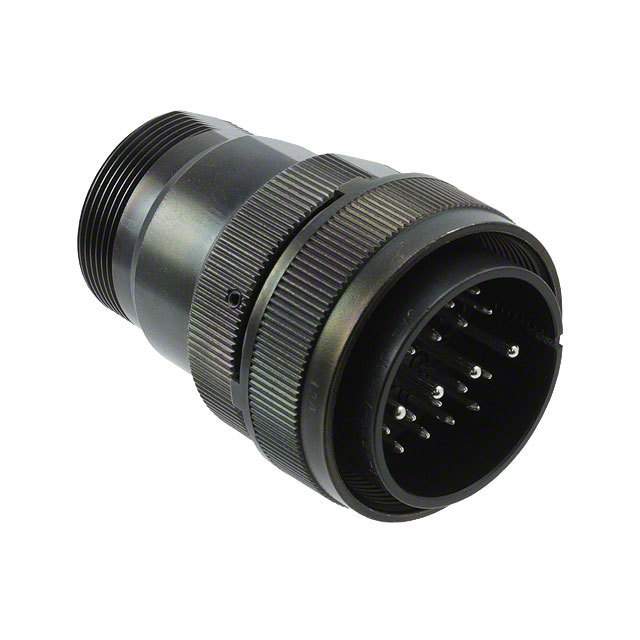

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JL04V-6A28-11PE-EB-R
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG MALE 22POS SOLDER CUP
Datasheets:	1.JL04V-6A28-11PE-EB-R.pdf 2.JL04V-6A28-11PE-EB-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1560 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1560 pcs

Reference Price (In US Dollars)

1 pcs: $18.235

10 pcs: $17.162

25 pcs: $16.626

50 pcs: $15.553

100 pcs: $14.695

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$18.235

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JL04V-6A28-11PE-EB-R

Part Number	JL04V-6A28-11PE-EB-R	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG MALE 22POS SOLDER CUP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1560 pcs	Data sheet	1.JL04V-6A28-11PE-EB-R.pdf 2.JL04V-6A28-11PE-EB-R.pdf
Voltage Rating	-	Termination	Solder Cup
Shielding	-	Shell Size, MIL	-
Shell Size - Insert	28-11	Shell Material	Aluminum Alloy
Shell Finish	Zinc	Series	JL04V
Packaging	Bulk	Other Names	670-2128 JL04V6A2811PEEBR
Orientation	N (Normal)	Operating Temperature	-55°C ~ 125°C
Number of Positions	22 (21 + PE)	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insert Material	Synthetic Resin	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Backshell, Coupling Nut, Ground	Fastening Type	Threaded
Detailed Description	22 (21 + PE) Position Circular Connector Plug, Male Pins Solder Cup Silver	Current Rating	13A, 23A
Contact Material	Copper Alloy	Contact Finish Thickness - Mating	-
Contact Finish - Mating	Silver	Connector Type	Plug, Male Pins
Color	Black	Cable Opening	-
Backshell Material, Plating	Aluminum Alloy, Zinc	Applications	Industrial, Medical, Telecommunications, Test Equipment & Measurement
