JAE Electronics, Inc.

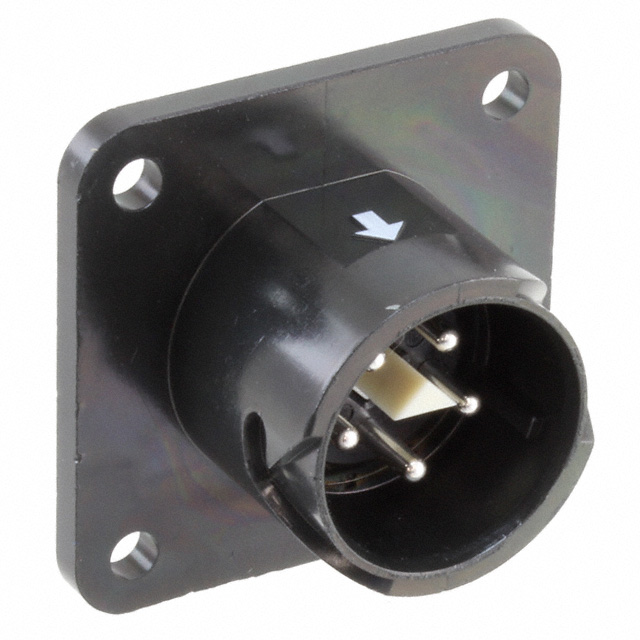

| Part Number | JN2AW05MH1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4319 pcs | Data sheet | 1.JN2AW05MH1.pdf2.JN2AW05MH1.pdf3.JN2AW05MH1.pdf |
| Voltage Rating | 400VAC | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | W | Shell Material | Zinc Alloy |
| Shell Finish | Zinc | Series | JN2W |
| Packaging | Bulk | Other Names | 670-2592 JN2AW05MH1-ND |
| Orientation | N (Normal) | Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 5 (4 Power + PE) | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Ground Lug | Fastening Type | Push-Twist |
| Detailed Description | 5 (4 Power + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial |
