KX15-20K4DE

JAE Electronics, Inc.

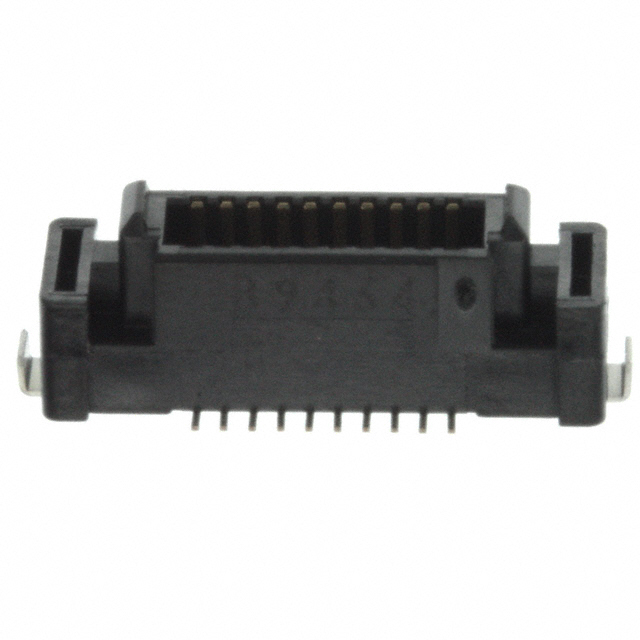

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KX15-20K4DE
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG 0.8MM 20POS SMD GOLD
Datasheets:	1.KX15-20K4DE.pdf 2.KX15-20K4DE.pdf 3.KX15-20K4DE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41435 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41435 pcs

Reference Price (In US Dollars)

1 pcs: $0.853

10 pcs: $0.774

25 pcs: $0.727

50 pcs: $0.695

100 pcs: $0.664

250 pcs: $0.601

500 pcs: $0.553

1000 pcs: $0.474

2500 pcs: $0.443

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.853

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KX15-20K4DE

Part Number	KX15-20K4DE	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG 0.8MM 20POS SMD GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41435 pcs	Data sheet	1.KX15-20K4DE.pdf 2.KX15-20K4DE.pdf 3.KX15-20K4DE.pdf
Series	KX15	Pitch	0.031" (0.80mm)
Packaging	Tray	Other Names	670-1305 KX1520K4DE
Number of Rows	2	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	6mm, 9mm, 12mm, 15mm, 18mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.226" (5.74mm)	Features	Board Guide, Solder Retention
Detailed Description	20 Position Connector Plug, Center Strip Contacts Surface Mount Gold	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector Type	Plug, Center Strip Contacts
