WR-80P-HF-HD-A1E

JAE Electronics, Inc.

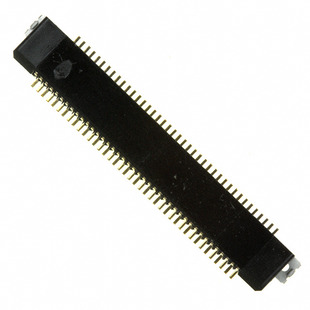

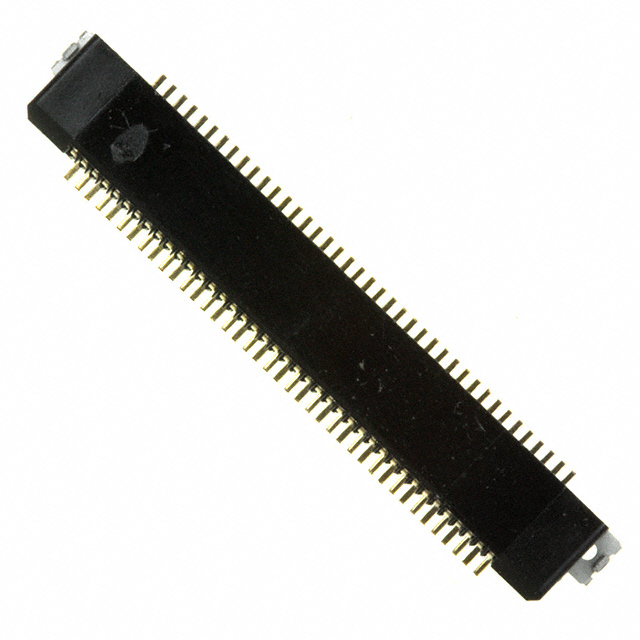

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR-80P-HF-HD-A1E
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG 0.5MM 80POS SMD R/A
Datasheets:	1.WR-80P-HF-HD-A1E.pdf 2.WR-80P-HF-HD-A1E.pdf 3.WR-80P-HF-HD-A1E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10226 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10226 pcs

Reference Price (In US Dollars)

1 pcs: $3.168

10 pcs: $3.029

25 pcs: $2.754

50 pcs: $2.616

100 pcs: $2.547

250 pcs: $2.272

500 pcs: $2.134

1000 pcs: $1.886

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.168

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR-80P-HF-HD-A1E

Part Number	WR-80P-HF-HD-A1E	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG 0.5MM 80POS SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10226 pcs	Data sheet	1.WR-80P-HF-HD-A1E.pdf 2.WR-80P-HF-HD-A1E.pdf 3.WR-80P-HF-HD-A1E.pdf
Series	WR	Pitch	0.020" (0.50mm)
Packaging	Tray	Other Names	670-1780 WR-80P-HF-HD-A1E-ND WR80PHFHDA1E
Number of Rows	2	Number of Positions	80
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.185" (4.70mm)	Features	Solder Retention
Detailed Description	80 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector Type	Plug, Outer Shroud Contacts
