RGW60TK65DGVC11

LAPIS Semiconductor

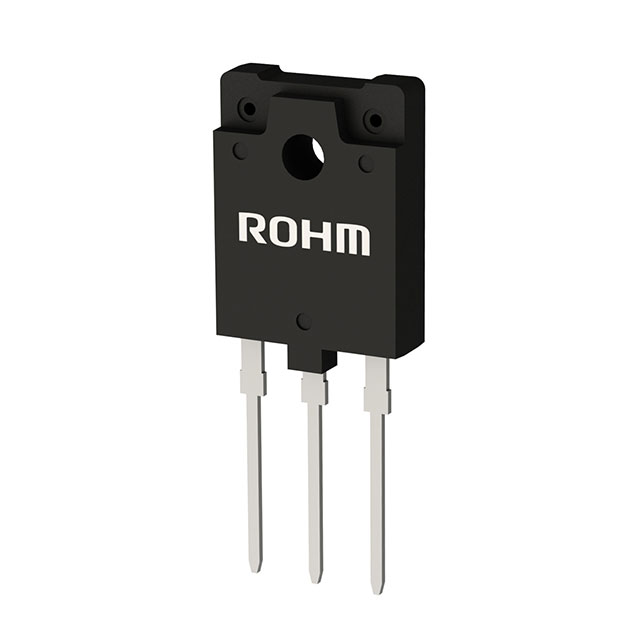

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RGW60TK65DGVC11
Manufacturer/Brand:	LAPIS Semiconductor
Product description	650V 30A FIELD STOP TRENCH IGBT
Datasheets:	RGW60TK65DGVC11.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13992 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13992 pcs

Reference Price (In US Dollars)

1 pcs: $2.097

10 pcs: $1.872

25 pcs: $1.684

100 pcs: $1.535

250 pcs: $1.385

500 pcs: $1.243

1000 pcs: $1.048

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.097

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RGW60TK65DGVC11

Part Number	RGW60TK65DGVC11	Manufacturer	LAPIS Semiconductor
Description	650V 30A FIELD STOP TRENCH IGBT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13992 pcs	Data sheet	RGW60TK65DGVC11.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 30A
Test Condition	400V, 30A, 10 Ohm, 15V	Td (on/off) @ 25°C	37ns/114ns
Switching Energy	480µJ (on), 490µJ (off)	Supplier Device Package	TO-3PFM
Series	-	Reverse Recovery Time (trr)	92ns
Power - Max	72W	Package / Case	TO-3PFM, SC-93-3
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench Field Stop
Gate Charge	84nC	Detailed Description	IGBT Trench Field Stop 650V 33A 72W Through Hole TO-3PFM
Current - Collector Pulsed (Icm)	120A	Current - Collector (Ic) (Max)	33A
