HX 20-P

LEM USA, Inc.

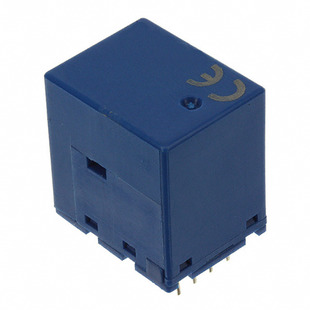

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HX 20-P
Manufacturer/Brand:	LEM USA, Inc.
Product description	SENSOR CURRENT HALL 20A AC/DC
Datasheets:	HX 20-P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5309 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5309 pcs

Reference Price (In US Dollars)

1 pcs: $5.981

5 pcs: $5.858

10 pcs: $4.882

25 pcs: $4.516

50 pcs: $4.394

150 pcs: $3.784

600 pcs: $3.539

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.981

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HX 20-P

Part Number	HX 20-P	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL 20A AC/DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5309 pcs	Data sheet	HX 20-P.pdf
Voltage - Supply	±15V	Series	HX
Sensor Type	Hall Effect, Open Loop	Sensitivity	-
Response Time	3µs	Polarization	Bidirectional
Packaging	Tray	Package / Case	Module
Output	Ratiometric, Voltage	Other Names	398-1038 64.79.17.000.0 HX20P
Operating Temperature	-25°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Linearity	±1%	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	50kHz	For Measuring	AC/DC
Detailed Description	Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional Module	Current - Supply (Max)	15mA
Current - Sensing	20A	Accuracy	±1%
